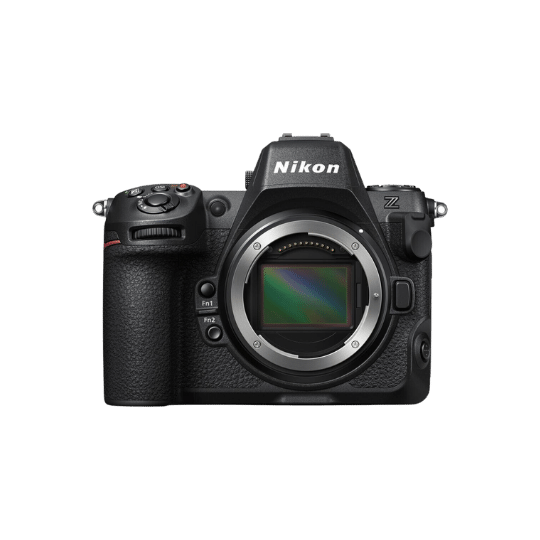

Nikon Z mount

Nikon Z mount

Full-frame / FX-Format

35.9 mm x 23.9 mm

CMOS

52.37 million

Image sensor cleaning, Image Dust Off reference data (requires NX Studio)

45.7 million

Full-frame/FX-format

NEF (RAW): 14 bit; choose from lossless compression, high efficiency (high), and high efficiency options JPEG: JPEG-Baseline compliant with fine (approx. 1 : 4), normal (approx. 1 : 8), or basic (approx. 1 : 16) compression; size-priority and optimal-quality compression available HEIF: Supports fine (approx. 1 : 4), normal (approx. 1 : 8), or basic (approx. 1 : 16) compression; size-priority and optimal-quality compression available NEF (RAW)+JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats NEF (RAW)+HEIF: Single photograph recorded in both NEF (RAW) and HEIF formats

Auto , Standard , Neutral , Vivid , Monochrome , Portrait , Landscape , Flat Creative Picture Controls (Dream, Morning, Pop, Sunday, Somber, Dramatic, Silence, Bleached, Melancholic, Pure, Denim, Toy, Sepia, Blue, Red, Pink, Charcoal, Graphite, Binary, Carbon); selected Picture Control can be modified; storage for custom Picture Controls Note: Choice of Picture Controls is restricted to Standard, Monochrome, and Flat when HLG is selected for tone mode during still photography.

DCF 2.0, Exif 2.32, MPEG‑A MIAF

CFexpress (Type B) , XQD , SD , SDHC (UHS-II compliant) , SDXC (UHS-II compliant)

1 CFexpress card or XQD card and 1 Secure Digital (SD) card. Either card can be used for overflow or backup storage, for separate storage of NEF (RAW) and JPEG or HEIF pictures, or for storage of duplicate JPEG or HEIF pictures at different sizes and image qualities; pictures can be copied between cards.

Automatically switches between monitor and viewfinder displays

Z mount NIKKOR lenses F mount NIKKOR lenses (mount adapter required; restrictions may apply)

-4 to +3 m-1

Approx. 0.8x (50 mm lens at infinity, -1.0 m-1)

Approx. 100% horizontal and 100% vertical

Electronic shutter with shutter sound and sensor shield

1/32000 to 30 s (choose from step sizes of 1/3, 1/2, and 1 EV, extendable to 900 s in mode M), bulb, time

Single frame , continuous low-speed , continuous high-speed , high-speed frame capture (with Pre-Release Capture) , Self-timer

20 fps

TTL metering using camera image sensor

P: programmed auto with flexible program, S: shutter-priority auto, A: aperture-priority auto, M: manual

Luminosity locked at detected value

Range: -5 to +5 EV (choose from step sizes of 1/3 and 1/2 EV)

-3 to +17 EV Figures are for ISO 100 and f/2.0 lens at 20 °C/68 °F

Matrix metering Center-weighted metering: Weight of 75% given to 12 or 8 mm circle in center of frame or weighting can be based on average of entire frame Spot metering: Meters circle with a diameter of approximately 4 mm centered on selected focus point Highlight-weighted metering

ISO 64 to 25600 (choose from step sizes of 1/3 and 1 EV); can also be set to approx. 0.3, 0.7, or 1 EV (ISO 32 equivalent) below ISO 64 or to approx. 0.3, 0.7, 1, or 2 EV (ISO 102400 equivalent) above ISO 25600; auto ISO sensitivity control available. Note: ISO sensitivity is limited to 400 to 25600 when HLG is selected for tone mode.

Auto, Extra high 2, Extra high 1, High, Normal, Low, and Off

25600

64

493

Pinpoint (available in photo mode only), single-point, dynamic-area (S, M, and L; available in photo mode only), wide-area (S, L, C1, and C2), and auto-area AF; 3D-tracking (available in photo mode only); subject-tracking AF (available in video mode only)

Autofocus (AF): Single-servo AF (AF-S) , Continuous-servo AF (AF-C) , full-time AF (AF-F; available only in video mode) ; predictive focus tracking Manual focus (M): Electronic rangefinder can be used

Hybrid phase-detection/contrast AF with AF assist

493

-3 to +1 EV (choose from step sizes of 1/3 and 1/2 EV)

TTL: i‑TTL flash control; i‑TTL balanced fill-flash is used with matrix, center-weighted, and highlight-weighted metering, standard i‑TTL fill-flash with spot metering

i-TTL flash control, radio-controlled Advanced Wireless Lighting, optical Advanced Wireless Lighting, modeling illumination, FV lock, Color Information Communication, auto FP high-speed sync, unified flash control

Auto (3 types), natural light auto, direct sunlight, cloudy, shade, incandescent, fluorescent (3 types), flash, choose color temperature (2500 to 10,000 K), preset manual (up to 6 values can be stored), all with fine-tuning

Yes. Exposure and/or flash, white balance, ADL

Yes

Mode M: Manual selection (ISO 64 to 25600; choose from step sizes of 1/6, 1/3 and 1 EV); with additional options available equivalent to approximately 0.3, 0.7, 1, or 2 EV (ISO 102400 equivalent) above ISO 25600; auto ISO sensitivity control (ISO 64 to Hi 2.0) available with selectable upper limit Modes P, S, A: Auto ISO sensitivity control (ISO 64 to Hi 2.0) with selectable upper limit Note: ISO sensitivity is limited to 400 to 25600 when HLG is selected for tone mode.

Built-in stereo or external microphone with attenuator option; sensitivity adjustable

Linear PCM (48 KHz, 24 bit, for videos recorded in NEV or MOV format) , AAC (48 KHz, 16 bit, for videos recorded in MP4 format)

NEV, MOV, MP4

125 min

8 -cm ( 3.2 –in.) diagonal

Approx. 2100 k-dot

Vertically and horizontally tilting TFT touch-sensitive LCD with 170° viewing angle, approximately 100% frame coverage, and color balance and 15-level manual brightness controls

Type C USB connectors - USB data connector (SuperSpeed USB) x1, USB Power Delivery connector x1. HDMI output connector: Type A connector. Audio input/output Stereo mini-pin jack (3.5 mm diameter). Ten-pin remote terminal: Built-in (can be used with MC-30A/MC-36A remote cords and other optional accessories)

SnapBridge

One EN‑EL15c rechargeable Li-ion battery * * EN‑EL15b and EN‑EL15a batteries can be used in place of the EN‑EL15c. Note, however, that fewer pictures can be taken on a single charge than with the EN‑EL15c. EH‑7P charging AC adapters and EH‑8P AC adapters can be used to charge EN‑EL15c and EN‑EL15b batteries only. MB-N12 power battery packs (available separately) taking two EN‑EL15c * batteries * EN‑EL15b and EN‑EL15a batteries can be used in place of the EN‑EL15c. Note, however, that fewer pictures can be taken on a single charge than with the EN‑EL15c.

EH‑7P charging AC adapters (available separately) EH‑8P AC adapters; requires UC‑E25 USB cable (available separately) EH‑5d, EH‑5c, and EH‑5b AC adapters; requires EP‑5B power connector (available separately)

Approx. 910 g (2 lb. 0.1 oz.) with battery and memory card but without body cap and accessory shoe cover; Approx. 820 g (1 lb. 13 oz.) (camera body only)

Approx. 144 x 118.5 x 83 mm ( 5.7 x 4.7 x 3.3 in.)

0.635 cm (1/4 in., ISO 1222)

Yes

Yes

Communication protocols: Bluetooth Specification version 5.0 Operating frequency: Bluetooth: 2402 to 2480 MHz Bluetooth Low Energy: 2402 to 2480 MHz Maximum output power (EIRP): Bluetooth: -4.1 dBm Bluetooth Low Energy: -5.6 dBm
