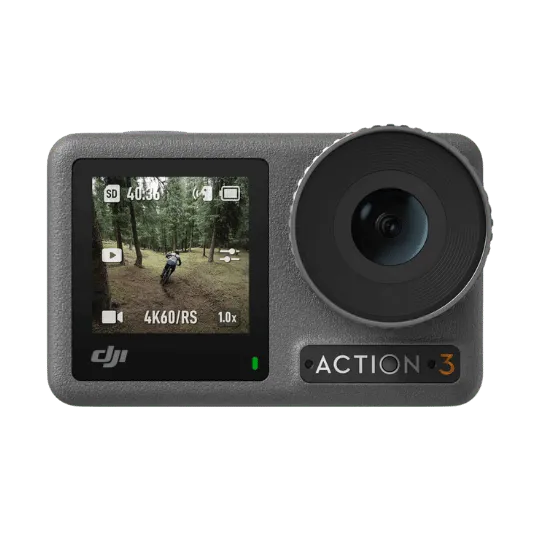

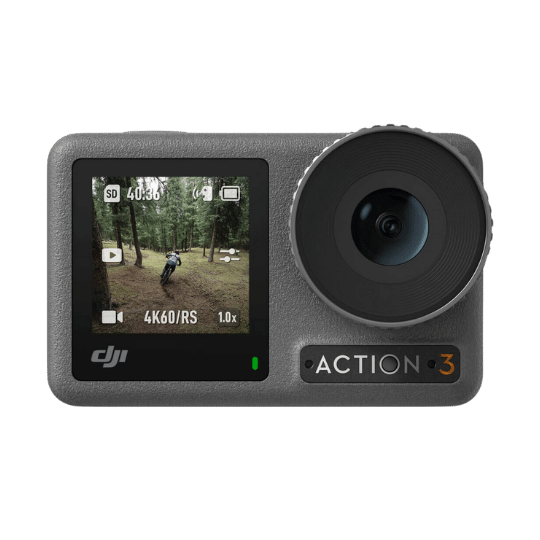

DJI Osmo Action 3

Released September 14, 2022

DJI Osmo Action 3

Key specifications
  • 4K/120fps & Super-Wide FOV
  • HorizonSteady
  • 16m Waterproof
Available Colors
Pricing

Mid Level

Features and Full Specifications

General

Size and Weight

Dimensions (L×W×H): 70.5×44.2×32.8 mm. Weight: 145 g

Waterproof

16 m [1] without Waterproof Case, 60 m with Waterproof Case

Number of Microphones

3

Touchscreens

Front Screen: 1.4-inch 326 ppi 320×320, Rear Screen: 2.25-inch 326 ppi 360×640, Front/Rear Screen Brightness: 750±50 cd/m²

Supported SD Cards

microSD (up to 256 GB)

Camera

Sensor

1/1.7-inch CMOS

Lens

FOV: 155°, Aperture: f/2.8, Focus Range: 0.3 m to ∞

ISO Range

Photo: 100-12800, Video: 100-12800

Zoom

Digital Zoom, Photo: 4×, Video: 2x (> 60fps), 3x (≤ 60fps, HorizonSteady On), 4x (≤ 60fps, HorizonSteady Off), Slow Motion/Timelapse: Not available

Slow Motion

4K: 4x (120fps), 2.7K: 4x (120fps), 1080p: 8x (240fps), 4x (120fps)

Timelapse

4K/2.7K/1080p@30fps, Intervals: 0.5/1/2/3/4/5/6/7/8/10/13/15/20/25/30/40 s, Duration: 5/10/20/30 mins, 1/2/3/5 hours, ∞

Photo and Video

Max Photo Resolution

4000×3000

Standard Recording

4K (4:3): 4096×3072@24/25/30/48/50/60fps. 4K (16:9): 3840×2160@100/120fps, 4K (16:9): 3840×2160@24/25/30/48/50/60fps, 2.7K (4:3): 2688×2016@24/25/30/48/50/60fps, 2.7K (16:9): 2688×1512@100/120fps, 2.7K (16:9): 2688×1512@24/25/30/48/50/60fps, 1080p (16:9): 1920×1080@100/120/200/240fps, 1080p (16:9): 1920×1080@24/25/30/48/50/60fps

Stabilization

EIS: RockSteady 3.0, RockSteady+, HorizonBalancing, HorizonSteady

Format

Photo Format: JPEG/RAW, Video Format: MP4 (H.264/HEVC)

Audio Output

48 kHz; AAC

Battery

Type

LiPo 1S

Capacity

1770 mAh

Energy

6.8 Wh

Connection

Wi-Fi Operating Frequency

2.400-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz

Wi-Fi Protocol

802.11 a/b/g/n/ac

Bluetooth Operating Frequency

2.400-2.4835 GHz

Bluetooth Protocol

BLE 5.0
