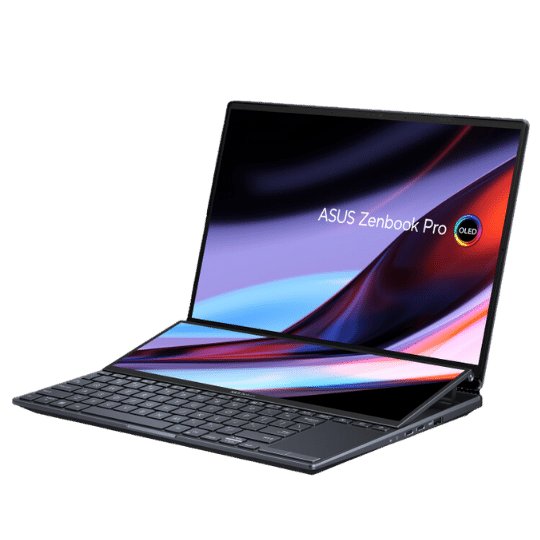

Zenbook Pro 14 Duo OLED

Released October 10, 2022

Zenbook Pro 14 Duo OLED

Released October 10, 2022

Zenbook Pro 14 Duo OLED

Key specifications

12.7” 2.8K 120 Hz ScreenPad
Intel® Core™ i9-13900H
NVIDIA® GeForce RTX™ 4060
85 W with ASUS IceCool Plus 12 V dual-fan boost

Available Colors

Pricing

High Level

Features and Full Specifications

Power

Processor

Intel® Core™ i7-12700H Processor 2.3 GHz (24M Cache, up to 4.7 GHz, 6P+8E cores) Intel® Core™ i5-12500H Processor 2.5 GHz (18M Cache, up to 4.5 GHz, 4P+8E cores)

Operating System

Windows 11 Home - ASUS recommends Windows 11 Pro for business Windows 11 Pro - ASUS recommends Windows 11 Pro for business

Graphics

Intel Iris Xᵉ Graphics *Intel Iris Xᵉ Graphics is only available in models with Intel® Core™ i5/i7/i9 processors and dual-channel memory. Intel® Iris Xe Graphics *Intel Iris Xᵉ Graphics is only available in models with Intel® Core™ i5/i7/i9 processors and dual-channel memory.

Memory

16GB LPDDR5 on board Max Total system memory up to:16GB 32GB LPDDR5 on board Max Total system memory up to:32GB 8GB LPDDR5 on board Max Total system memory up to:8GB

Storage

1TB M.2 NVMe™ PCIe® 4.0 Performance SSD 512GB M.2 NVMe™ PCIe® 4.0 Performance SSD 1TB M.2 NVMe™ PCIe® 4.0 SSD 2TB M.2 NVMe™ PCIe® 4.0 Performance SSD 512GB M.2 NVMe™ PCIe® 4.0 SSD

Battery

76WHrs, 4S1P, 4-cell Li-ion ø6.0, 150W AC Adapter, Output: 20V DC, 7.5A, 150W, Input: 100~240V AC 50/60Hz universal

Keyboard and Touchpad

Keyboard

Backlit Chiclet Keyboard

Touchpad

1.4mm Key-travel, Touchpad

Size and Dimesions

Display

14.5-inch, 3K (2880 x 1800) OLED 16:10 aspect ratio, LED Backlit, 0.2ms response time, 120Hz refresh rate, 550nits HDR peak brightness, 100% DCI-P3 color gamut, 1,000,000:1, VESA CERTIFIED Display HDR True Black 500, 1.07 billion colors, PANTONE Validated, 70% less harmful blue light, SGS Eye Care Display, Touch screen, (Screen-to-body ratio)93%, With stylus support

Additional Display

ScreenPad™ Plus (12.7" 2880 x 864 IPS-level Panel Support Stylus)

Dimensions

32.35 x 22.47 x 1.79 ~ 1.96 cm (12.74" x 8.85" x 0.70" ~ 0.77") (W x D x H)

Weight

1.70 kg (3.75 lbs)

Camera and Audio

Camera

720p HD camera 1080p FHD camera

Audio

Smart Amp Technology Built-in array microphone harman/kardon (Premium) with Cortana voice-recognition support

Wireless Connectivity and Ports

Wireless Connectivity

Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card

Ports

1x USB 3.2 Gen 2 Type-A 2x Thunderbolt™ 4 supports display / power delivery 1x HDMI 2.1 FRL 1x HDMI 2.1 TMDS 1x 3.5mm Combo Audio Jack 1x DC-in Micro SD Express 7.1 card reader

Features

MyASUS Features

System diagnosis Battery health charging Fan Profile Splendid Tru2Life Function key lock WiFi SmartConnect Link to MyASUS TaskFirst Live update ASUS OLED Care AI Noise Canceling AdaptiveLock

Security

Trusted Platform Module (TPM) 2.0 Trusted Platform Module (Firmware TPM) McAfee® IR webcam with Windows Hello support
