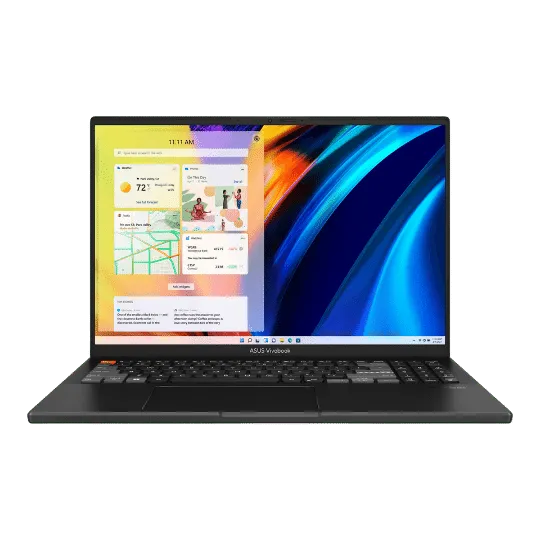

ASUS Vivobook Pro 16X OLED (N7601, 12th Gen Intel)

Released May 9, 2022

ASUS Vivobook Pro 16X OLED (N7601, 12th Gen Intel)

Key specifications
  • Up to 12th Gen Intel® Core™ i9-12900H processor
  • Up to NVIDIA® GeForce RTX™ 3060 with NVIDIA Studio Driver support
  • Up to 16 GB DDR5 4800 MHz5 with one Upgradable SODIMM
  • ASUS IceCool Pro thermal technology dual-fan, quad vented cooling system (140W CPU + GPU performance)
Available Colors
Pricing

High Level

Features and Full Specifications

Performance

Operating System

Windows 11 Home - ASUS recommends Windows 11 Pro for business

Processor

Intel® Core™ i9-12900H Processor 2.5 GHz (24M Cache, up to 5.0 GHz, 6P+8E cores)

Graphics

NVIDIA® GeForce® RTX™ 3060 Laptop GPU 6GB GDDR6 Intel Iris Xe Graphics *Intel Iris Xᵉ Graphics is only available in models with Intel® Core™ i5/i7/i9 processors and dual-channel memory.

Memory

16GB DDR5 on board *Dual-channel memory support requires at least one SO-DIMM module.

Storage

512GB M.2 NVMe™ PCIe® 4.0 Performance SSD

Built in

Keyboard & Touchpad

Backlit Chiclet Keyboard with Num-key, 1.4mm Key-travel, Touchpad, support DialPad

Camera

1080p FHD camera, With privacy shutter

Audio

Smart Amp Technology, Built-in speaker, Built-in array microphone, harman/kardon (Mainstream), with Cortana voice-recognition support

Built-in Apps

MyASUS, ProArt Creator Hub, ScreenXpert, GlideX

Ports and Slots

Expansion Slots (includes used)

1x DDR5 SO-DIMM slot, 1x M.2 2280 PCIe 3.0x4, 1x M.2 2280 PCIe 4.0x4

I/O Ports

1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C support display / power delivery, 1x Thunderbolt™ 4 supports display / power delivery, 1x HDMI 2.1 FRL, 1x 3.5mm Combo Audio Jack, 1x RJ45 Gigabit Ethernet, 1x DC-in, Micro SD Express 7.1 card reader

Others

Weight

2.30 kg (5.07 lbs)

Dimensions (W x D x H)

35.54 x 24.85 x 1.99 ~ 2.19 cm (13.99" x 9.78" x 0.78" ~ 0.86")

Battery

90WHrs, 4S1P, 4-cell Li-ion

Power Supply

ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240V AC 50/60Hz universal

Network and Communication

Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

Features

MyASUS Features

System diagnosis, Battery health charging, Fan Profile, Splendid, Function key lock, WiFi SmartConnect, Link to MyASUS, TaskFirst, Live update, ASUS OLED Care, AI Noise Canceling

ASUS Exclusive technology

ASUS Antimicrobial Guard

Security

BIOS Booting User Password Protection, Trusted Platform Module (Firmware TPM), McAfee®, Fingerprint sensor integrated with Power Key
