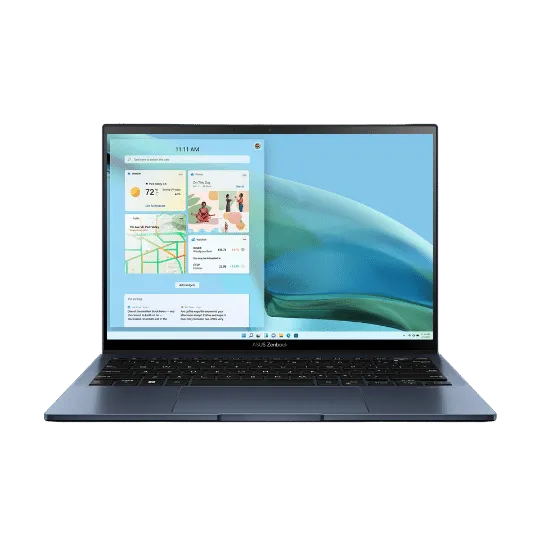

ASUS Zenbook S 13 OLED (UM5302, AMD Ryzen 6000 series)

Released September 16, 2022

ASUS Zenbook S 13 OLED (UM5302, AMD Ryzen 6000 series)

Key specifications
  • Up to AMD Ryzen™ 7 6800U processor
  • AMD Radeon™ graphics
  • Up to 16 GB LPDDR5 6400 MHz memory
  • ASUS ErgoSense keyboard and touchpad
Available Colors
Pricing

High Level

Features and Full Specifications

Performance

Operating System

Windows 11 Home - ASUS recommends Windows 11 Pro for business

Processor

AMD Ryzen™ 7 6800U Mobile Processor (8-core/16-thread, 16MB cache, up to 4.7 GHz max boost), AMD Ryzen™ 5 6600U Mobile Processor (6-core/12-thread, 16MB cache, up to 4.5 GHz max boost)

Graphics

AMD Radeon™ Graphics

Memory

16GB LPDDR5 on board *Supports dual-channel memory. 8GB LPDDR5 on board *Supports dual-channel memory.

Storage

512GB M.2 NVMe™ PCIe® 4.0 SSD

Built in

Keyboard & Touchpad

Backlit Chiclet Keyboard, 1.4mm Key-travel, Touchpad, support NumberPad, Backlit Chiclet Keyboard, 1.4mm Key-travel, Touchpad

Camera

720p HD camera

Audio

Smart Amp Technology, Built-in speaker, Built-in array microphone, harman/kardon (Premium), with Cortana voice-recognition support

Built-in Apps

MyASUS, ScreenXpert, GlideX

Ports and Slots

I/O Ports

3x USB 3.2 Gen 2 Type-C support display / power delivery, 1x 3.5mm Combo Audio Jack

Others

Weight

1.00 kg (2.20 lbs)

Dimensions (W x D x H)

29.67 x 21.05 x 1.49 ~ 1.49 cm (11.68" x 8.29" x 0.59" ~ 0.59")

Battery

67WHrs, 4S1P, 4-cell Li-ion

Power Supply

TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100-240V AC 50/60GHz universal

Network and Communication

Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

Features

MyASUS Features

System diagnosis, Battery health charging, Fan Profile, Splendid, Function key lock, WiFi SmartConnect, Link to MyASUS, TaskFirst, Live update, ASUS OLED Care, AI Noise Canceling

ASUS Exclusive technology

ASUS Antimicrobial Guard

Security

Trusted Platform Module (TPM), McAfee®, Fingerprint sensor integrated with Power Key
