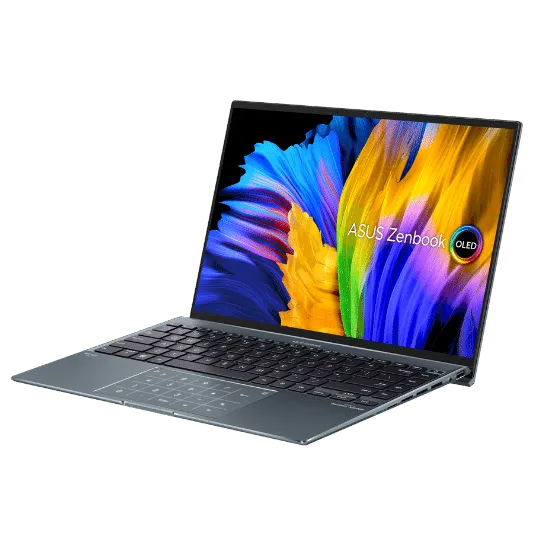

Zenbook 14X OLED (UX5401, 12th Gen Intel)

Released June 12, 2023

Zenbook 14X OLED (UX5401, 12th Gen Intel)

Key specifications
  • 2.8K OLED HDR NanoEdge touchscreen
  • 12th Gen Intel® Core™ processors
  • Intel Iris® Xe graphics
  • up to 45W with IceCool technology
Available Colors
Pricing

High Level

Features and Full Specifications

Power

Processor

Intel® Core™ i7-12700H Processor 2.3 GHz (24M Cache, up to 4.7 GHz, 6P+8E cores), Intel® Core™ i5-12500H Processor 2.5 GHz (18M Cache, up to 4.5 GHz, 4P+8E cores)

Operating System

Windows 11 Home - ASUS recommends Windows 11 Pro for business

Graphics

Intel Iris Xᵉ Graphics (available for Intel® Core™ i5/i7 with dual channel memory), Intel Iris Xe Graphics, *Intel Iris Xᵉ Graphics is only available in models with Intel® Core™ i5/i7/i9 processors and dual-channel memory.

Memory

16GB LPDDR5 on board, *Supports dual-channel memory.

Storage

1TB M.2 NVMe™ PCIe® 4.0 Performance SSD, 512GB M.2 NVMe™ PCIe® 4.0 Performance SSD

Battery

63WHrs, 3S1P, 3-cell Li-ion, TYPE-C, 100W AC Adapter, Output 20V DC, 5A, 100W, Input: 100~240V AC 50/60Hz universal

Keyboard and Touchpad

Keyboard

Backlit Chiclet Keyboard

Touchpad

1.4mm Key-travel, Support NumberPad

Size and Dimesions

Display

14.0-inch, 2.8K (2880 x 1800) OLED 16:10 aspect ratio, LED Backlit, 0.2ms response time, 90Hz refresh rate, 550nits HDR peak brightness, 100% DCI-P3 color gamut, 1,000,000:1, 1.07 billion colors, PANTONE Validated, Glossy display, 70% less harmful blue light, SGS Eye Care Display, Touch screen, (Screen-to-body ratio)92%, With stylus support

Dimensions

31.12 x 22.11 x 1.59 ~ 1.59 cm (12.25" x 8.70" x 0.63" ~ 0.63")

Weight

1.40 kg (3.09 lbs)

Camera and Audio

Camera

720p HD camera With privacy shutter

Audio

Smart Amp Technology, Built-in speaker, Built-in array microphone, harman/kardon (Premium), with Cortana voice-recognition support

Wireless Connectivity and Ports

Wireless Connectivity

Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card

Ports

1x USB 3.2 Gen 2 Type-A 2x Thunderbolt™ 4 supports display / power delivery 1x HDMI 2.1 TMDS 1x 3.5mm Combo Audio Jack Micro SD card reader

Features

MyASUS Features

System diagnosis, Battery health charging, Fan Profile, Splendid, Function key lock, WiFi SmartConnect, Link to MyASUS, TaskFirst, Live update, ASUS OLED Care, AI Noise Canceling

Security

BIOS Booting User Password Protection, Trusted Platform Module (Firmware TPM), Trusted Platform Module (TPM) 2.0, McAfee®, Fingerprint sensor integrated with Power Key
