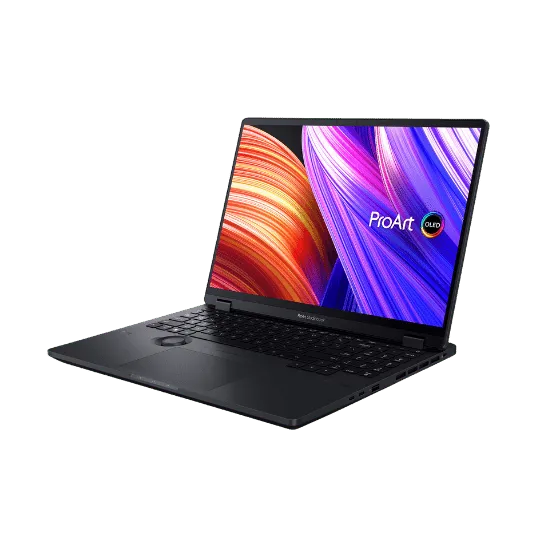

ASUS ProArt Studiobook 16 OLED (H7604)

Released May 5, 2023

ProArt Studiobook 16 OLED (H7604)

Key specifications
  • Windows 11 Pro - ASUS recommends Windows 11 Pro for business
  • Intel® Core™ i9-13980HX processor
  • Up to NVIDIA® GeForce RTX™ 4070
Available Colors
Pricing

High Level

Features and Full Specifications

Power

Processor

Intel® Core™ i9-13980HX Processor 2.2 GHz (36MB Cache, up to 5.6 GHz, 24 cores, 32 Threads)

Operating System

Windows 11 Pro - ASUS recommends Windows 11 Pro for business

Graphics

NVIDIA® GeForce RTX™ 4070 Laptop GPU 8GB GDDR6 NVIDIA® GeForce® RTX 3070,With Boost up to 1440MHz at 90W (110W with Dynamic Boost) Up to 2175MHz Boost Clock 130W Maximum Graphics Power with Dynamic Boost Intel® UHD Graphics

Storage

1TB M.2 NVMe™ PCIe® 4.0 Performance SSD

Battery

90WHrs, 4S1P, 4-cell Li-ion

Keyboard and Touchpad

Keyboard & Touchpad

Backlit Chiclet Keyboard with Num-key, 1.4mm Key-travel, Precision touchpad

Size and Dimesions

Display

16.0-inch, 3.2K (3200 x 2000) OLED 16:10 aspect ratio, 0.2ms response time, 500nits, 550nits HDR peak brightness, 100% DCI-P3 color gamut, 1,000,000:1, 1.07 billion colors, PANTONE Validated, Glossy display, 70% less harmful blue light, SGS Eye Care Display, Touch screen, (Screen-to-body ratio)87%, With stylus support

Dimensions

35.60 x 27.10 x 2.09 ~ 2.39 cm (14.02" x 10.67" x 0.82" ~ 0.94")

Weight

2.40 kg (5.29 lbs)

Camera and Audio

Camera

FHD camera with IR function to support Windows Hello With privacy shutter

Audio

Smart Amp Technology Built-in speaker Built-in 4-way stereo speakers Built-in microphone Built-in array microphone harman/kardon (Premium) with Cortana voice-recognition support

Wireless Connectivity and Ports Specifications

Wireless Connectivity

Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card

I/O Ports

2x USB 3.2 Gen 2 Type-A 2x Thunderbolt™ 4 supports display / power delivery 1x HDMI 2.1 FRL 1x 3.5mm Combo Audio Jack 1x Headphone/Headset 1x RJ45 Gigabit Ethernet 1x DC-in SD Express 7.0 card reader

Features

MyASUS Features

System diagnosis Battery health charging Fan Profile Splendid Function key lock WiFi SmartConnect Link to MyASUS TaskFirst Live update ASUS OLED Care AI Noise Canceling AdaptiveLock

Security

HDD User Password Protection and Security BIOS Booting User Password Protection Trusted Platform Module (TPM) 2.0 BIOS setup user password Security Lock McAfee® IR webcam with Windows Hello support
