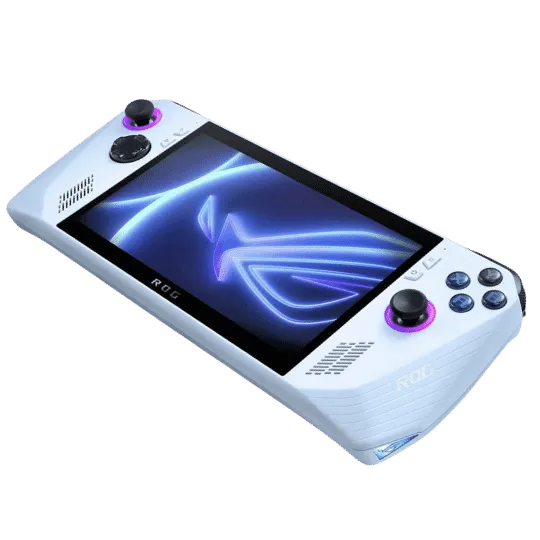

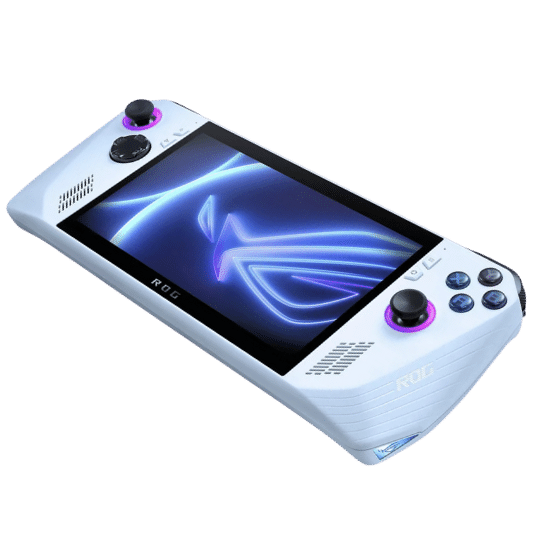

ROG Ally (2023) RC71L-NH001W

Released July 20, 2023

ROG Ally (2023) RC71L-NH001W

Key specifications
  • Ryzen™ Z1 Extreme processor
  • Powerful LPDDR5 6400 Memory
  • up to 512GB of lightning-fast PCIe Gen 4 storage
  • Corning® Gorilla® Glass DXC coating
Available Colors
Pricing

High Level

Features and Full Specifications

Specification

Operating System

Windows 11 Home

CPU

AMD Ryzen™ Z1 Extreme Processor ("Zen4" architecture with 4nm process, 8-core /16-threads, 24MB total cache, up to 5.10 Ghz boost)

GPU

AMD Radeon™ Graphics (AMD RDNA™ 3, 12 CUs, up to 2.7 GHz, up to 8.6 Teraflops)

TDP

9-30W

Display

Size

7-inch FHD (1920 x 1080) 16:9, IPS-level glossy display

Protection

Gorilla® Glass DXC, Gorilla® Glass Victus™

Refresh Rate

120Hz

Memory and Storage

Storage

512GB PCIe® 4.0 NVMe™ M.2 SSD (2230)

Memory

16GB LPDDR5 on board (6400MT/s dual channel)

Input and Output

I/O Ports

1x 3.5mm Combo Audio Jack, , 1x ROG XG Mobile Interface and USB Type-C combo port (with USB 3.2 Gen2, support DisplayPort™ 1.4), 1x UHS-II microSD card reader (supports SD, SDXC and SDHC)

Control and Input

A B X Y buttons, D-pad, L & R Hall Effect analog triggers, L & R bumpers, View button, Menu button, Command Center button, Armoury Crate button, 2 x assignable grip buttons, Thumbsticks: 2 x full-size analog sticks, Haptics: HD haptics, Gyro: 6-Axis IMU

Other

Network and Communication

Wi-Fi 6E(802.11ax) (Triple band) 2*2, Bluetooth® 5.2 (*Bluetooth® version may change with OS version different.)

Battery

40WHrs, 4S1P, 4-cell Li-ion

Power Supply

TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal

Dimensions

Size

28.0 x 11.1 x 2.12 ~ 3.24 cm (11.02" x 4.37" x 0.83" ~ 1.28") (W x D x H)

Weight

608 g
