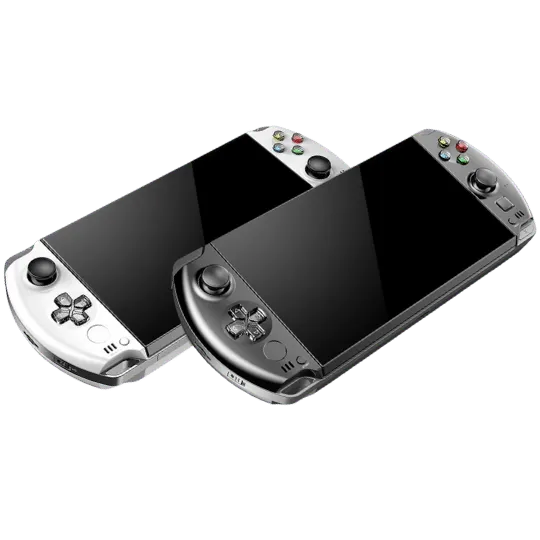

GPD WIN 4 (2023) AMD Ryzen 5 7640U

Released October 12, 2023

GPD WIN 4 (2023) AMD Ryzen 7 7840U

Key specifications
  • AMD Ryzen 5 7640U
  • 512GB / 2TB / 4TB SSD
  • Hall-effect joysticks
Available Colors
Pricing

Mid Level

Features and Full Specifications

Display

Screen Type

Corning Gorilla Glass 5,H-IPS Technology

Screen Size

6 Inches, Native Landscape Mode, DC Dimming, 16:9 aspect ratio

Screen Resolution

1920 × 1080, 1280 × 720, Image resolution: 40Hz & 60Hz

CPU

Product model

AMD Ryzen 5 7640U

# of CPU Cores / # of Threads

6C / 12T

Total Cache

22.38 MB

Process Size

4nm

TDP

15W-30W

GPU

Processor Graphics

AMD Radeon 760M

Architecture

RDNA 3.0

Graphics Frequency

2600 MHz

Floating-point Performance

11.53 TFlops (FP16), 5.84 TFlops (FP32), 368.4 GFlops (FP64)

Video Memory

The Default Shared Memory Is 3GB, With A Maximum Allocation Of 8GB, Which Requires Manual Adjustment In The BIOS

Storage

Memory

16GB

Memory Types

LPDDR5x 7500 MT/s

Hard Disk Type

M.2 SSD

Standard Capacity

M.2 NVMe 2280 SSD 512GB / 2TB / 4TB

Bus Specification

PCIe 4.0 × 4 Transfer Protocol

Transfer Protocol

NVMe 1.3 / 1.4

Multimedia Support

Audio System

Built-in Sound Chip + Intelligent Amplifier That Features High Energy Efficiency, High PSRR and Low Noise

Loudspeakers

Built-in Dual Speakers

Microphone

Built-in Microphone

Network Communications

4G LTE Module

Back-mount Module, Selectable Type of SIM Card: Nano-SIM, Single

Wi-Fi

IEEE 802.11 a/b/g/n/ac/ax, Support 2.4G/5G Dual Frequency Band, Dual Channel Maximum Transmission Rate 2402Mbps

Bluetooth

5.2

Others

I/O Interface

Video / Data / Charging, microSDXC Slot, Ethernet Interface, Audio Port, BIOS Reset Port

I/O Device

Keyboard, Mouse, Fingerprint Recognition, Joystick, D-Pad, Game Function Buttons, Game Accessories Buttons, Handle Vibration, Dorsal Key, Other Keys, Sensor, Speaker, Indicator Lamp

Battery

Li-polymer, 45.62Wh

Battery Life

2 Hours Of Heavy Use, 3-6 Hours Of Moderate Use, 10 Hours Of Light Use, Depending On The Specific Environment Of Use

Net Weight

598g

Length

220×92×28mm
