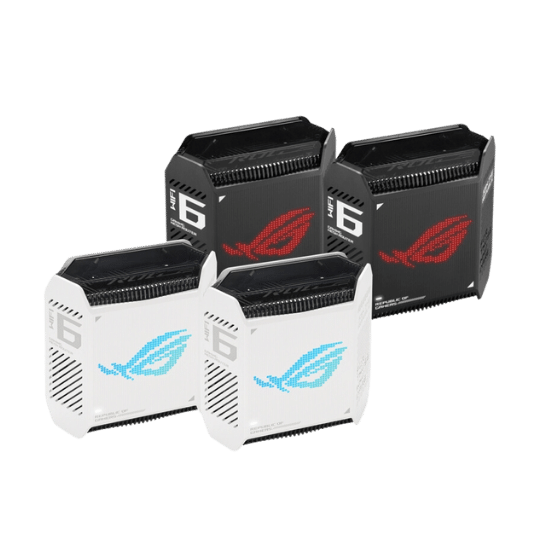

AX10000 ultimate AX performance

WiFi 6 (802.11ax), IPv4, IPv6, Backwards compatible with 802.11a/b/g/n/ac Wi-Fi

2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps, 5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps, 5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Internal antenna x 9

2.4GHz 2x2, 5GHz-1 4x4, 5GHz-2 4x4

OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 1024-QAM high data rate, 20/40/80/160 MHz bandwidth

Wireless router mode, Access point mode

2.4G Hz, 5 GHz-1, 5 GHz-2

1 x 2.5 Gigabit WAN Port, 3 x Gigabit LAN Ports, 1 x USB 3.2 Gen 1x1 Port

WPS Button, Reset Button, Power Switch

Power x 1

880 g

Primary AiMesh Router, AiMesh Node

Game Boost / Acceleration, Game Radar, WTFast, ROG_First, OpenNAT (Game Profile), Gaming Port

AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking

MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Wi-Fi Radar Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming

Black Moonlight White
