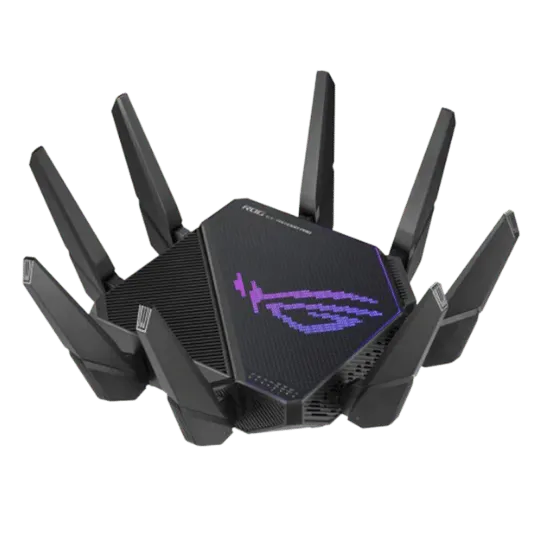

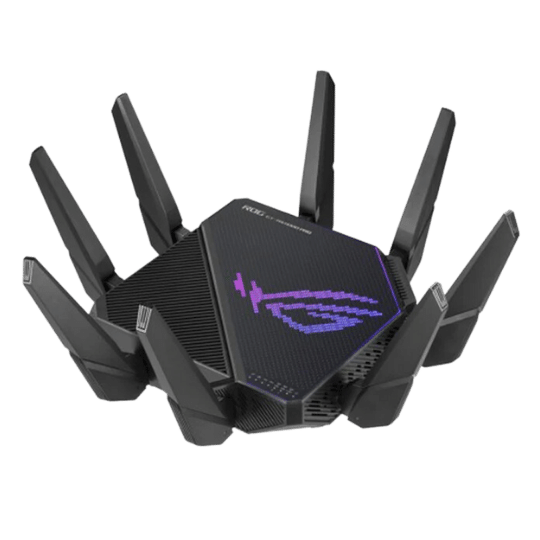

AX11000 ultimate AX performance

IEEE 802.11ax, IPv4, IPv6

2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps, 5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps, 5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

External antenna x 8 (non-detachable)

2.4GHz 4x4, 5GHz-1 4x4, 5GHz-2 4x4

OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 1024-QAM high data rate, 20/40/80/160 MHz bandwidth

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

Tri-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2

1 x 2.5 Gigabit WAN Port, 1 x 10 Gigabit WAN/LAN Port, 4 x Gigabit LAN Ports, 1 x USB 3.2 Gen 1 Port, 1 x USB 2.0 Port

WPS Button, LED Button, Reset Button, Power Switch

Power x 1, 2.4G x 1, 5GHz-1 x 1, 5GHz-2 x 1, WPS x 1, 10GE x 1, LAN x 1, WAN x 1

354 * 354 * 193

2180g

AiMesh • Primary AiMesh Router, • AiMesh Node

Game Boost / Acceleration, Game Radar, WTFast, UU boost, ROG_First, OpenNAT (Game Profile)

AiProtection Pro • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64 Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming
