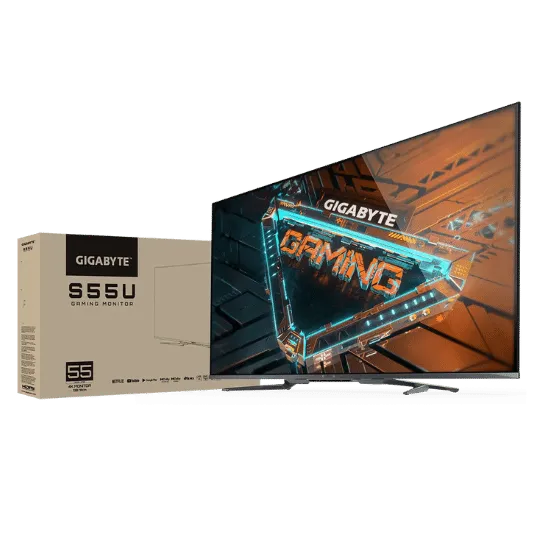

GIGABYTE S55U Gaming Monitor

Released April 21, 2021

GIGABYTE S55U Gaming Monitor

Key specifications
  • 54.6"" UHD with QD Display
  • 10-bit color & 96% DCI-P3 color gamut
  • Full Array Local Dimming - up to 132 zones
Available Colors
Pricing

Mid Level

Features and Full Specifications

Specification

Panel

Panel Size (diagonal): 54.6” VA, Panel Backlight / Type: Direct

Modes

Picture modes if SDR input:【Vivid / Standard / Energy Saving / Game / Sports / Movie Day / Movie Night/Auto Mode/PC Mode 】 If HDR input :【HDR Vivid /HDR Standard / HDR Energy Saving /HDR Game / HDR Sport / HDR Theater/ HDR PC Mode】 If Dolby Vision IQ: 【Dolby Vision IQ/ Dolby Vision Dark/ Dolby Vision Custom​ 】 If HDR10+: 【HDR10+ Vivid/HDR10+ Standard/HDR10+ Theater 】. Sound Modes Standard / Movie / Sports / Music / Speech / Late Night.

Viewing Angle

178°(H)/178°(V)

Refresh Rate

120Hz

OS

Android OS (with Google Assistant)

Audio

Dolby Atmos/ DTS HD

Display

Display Viewing Area (HxV)

1209.6 x 680.4 mm

Display Surface(non-glare/ glare)

Anti-glare (Haze 3%)

Color Saturation

96% DCI-P3 / 140% sRGB

True Resolution

3840 x 2160(UHD)

Brightness

500 cd/m2(TYP), 1500cd/m2 (PEAK)

Display Colors

1.07B

Connectivity

Connectivity

2 x HDMI 2.1 (48G, eARC), 2 x HDMI 2.0, 1 x USB 3.2 Gen 1 Downstream ports, 1 x USB 3.2 Gen 1 Upstream port, 1 x USB 2.0, 1 x Earphone Jack, 1 x Ethernet, 1 x Wireless 802.11ac 2.4GHz/5GHz, 1 x Bluetooth

Speaker

10W x 2

Digital Audio Output

Optical Fiber x1

Power

Power Type

Power Board Build-in

Power

Power Consumption: 83W, Power Saving Mode: 0.5W, Power Off Mode: 0.3W

Voltage

AC 100-240V ~ 50/60Hz

Size and Weight

Phys. Dimension with Stand(WxHxD)

1232*749*309mm

Phys. Dimension w/o stand (WxHxD)

1232*717*98mm

Net Weight with stand (Esti.)

18.1kg

Net Weight without stand (Esti.)

16.9kg

Net Weight (Esti.)

5.2 kg

Gross Weight (Esti.)

25.3kg

Other

Light sensor

Yes

Unique Features

Aim Stabilizer Sync, Black Equalizer, Crosshair, Refresh Rate, Timer, 6-axis Color Control, HDMI CEC, Noise Reduction, Parental Control

Local Dimming

132
