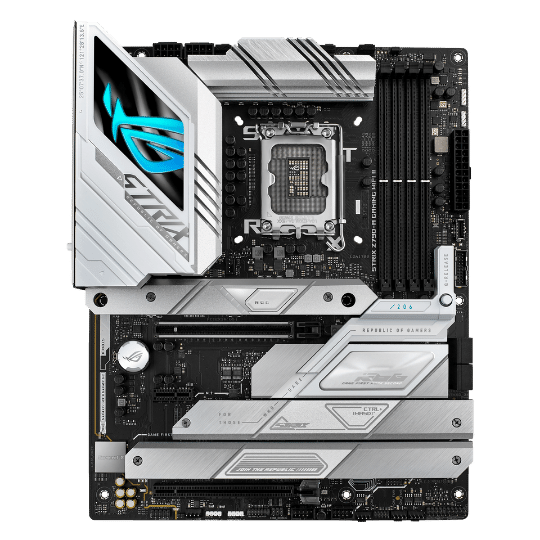

ROG Strix Z790-A Gaming WIFI II

Released October 12, 2023

ROG Strix Z790-A Gaming WIFI II

Released October 12, 2023

ROG Strix Z790-A Gaming WIFI II

Key specifications

Dual ProCool II Power Connectors
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors
16(70A)+1(70A)+2 Power Stages

Available Colors

Pricing

High Level

Features and Full Specifications

Power

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset

Intel® Z790 Chipset

Memory

4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture, Supports Intel® Extreme Memory Profile (XMP) memory module, Supports DIMM Flex, OptiMem II, ASUS Enhanced Memory Profile II (AEMP II)

Graphics

1 x DisplayPort** 1 x HDMI™ port***

Wireless & Bluetooth

Intel® Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth® v5.4****

Operating System

Windows® 11, Windows® 10 64-bit

Storage

Intel® Core™ Processors (14th & 13th & 12th Gen)

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports

Ports and Slots

Expansion Slots

Intel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset* 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x1 slot

Ethernet

1 x Intel® 2.5Gb Ethernet ASUS LANGuard

Rear USB (Total 12 ports)

1 x USB 20Gbps port (1 x USB Type-C®), 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®), 4 x USB 5Gbps ports (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 20Gbps (supports USB Type-C® with up to with up to 30W PD Fast-charge ), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Features

ROG Exclusive Software

- ROG CPU-Z, - DTS® Sound Unbound

ASUS Exclusive Software

Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Power Saving - Sonic Studio - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner

UEFI BIOS

AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey MemTest86
