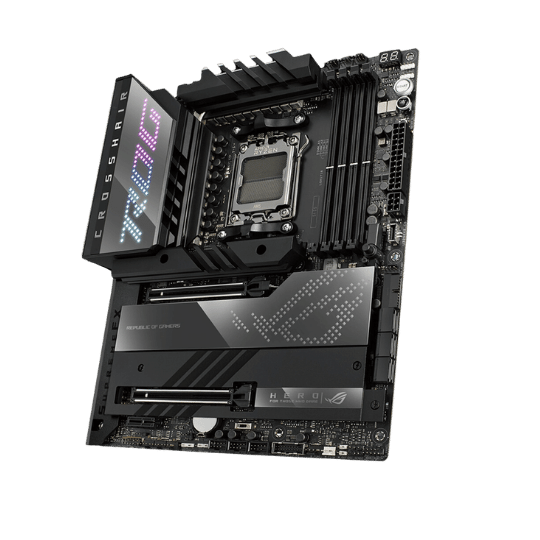

ROG Crosshair X670E Hero Gaming Motherboard

Released September 27, 2022

ROG Crosshair X670E Hero Gaming Motherboard

Released September 27, 2022

ROG Crosshair X670E Hero Gaming Motherboard

Key specifications

AMD X670
Two on-board M.2 slots and both x16 slots are PCIe Gen 5-ready
Polymo Lighting shines across the I/O shroud sporting a choice of customizable patterns

Available Colors

Pricing

High Level

Features and Full Specifications

Power

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

Chipset

AMD X670

Memory

4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/ 5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD® Extended Profiles for Overclocking (EXPO™) OptiMem II

Graphics

1 x HDMI® port* 2 xUSB4® ports support USB Type-C® display outputs**

Wireless & Bluetooth

Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3**

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Storage

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

AMD X670 Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 ) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 ) 6 x SATA 6Gb/s ports

Ports and Slots

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)* | AMD X670 Chipset 1 x PCIe 4.0 x1 slots

Ethernet

1 x Intel® 2.5Gb Ethernet | ASUS LANGuard

Rear USB (Total 12 ports)

2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®) | 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) | 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)

Front USB (Total 11 ports)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)* | 2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports | 3 x USB 2.0 headers support additional 6 USB 2.0 ports

Features

ROG Exclusive Software

- GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - BullGuard or equivalent internet security (1-year full version)

ASUS Exclusive Software

Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving - Polymo Lighting - Two-Way AI Noise Cancellation AI Suite 3, TPU, DIGI+ Power Control, Turbo app, PC Cleaner, MyAsus, WinRAR,

UEFI BIOS

ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
