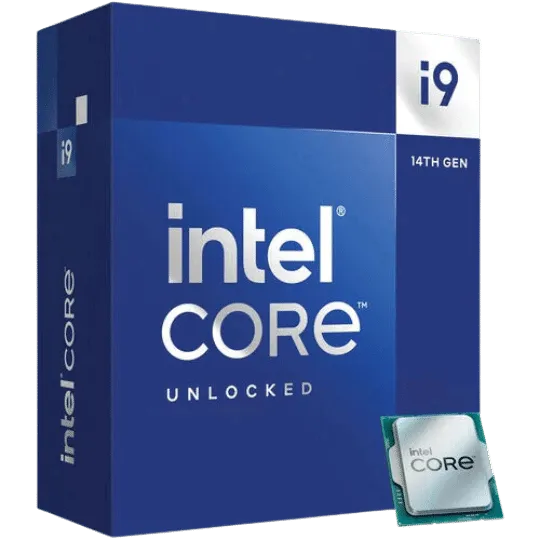

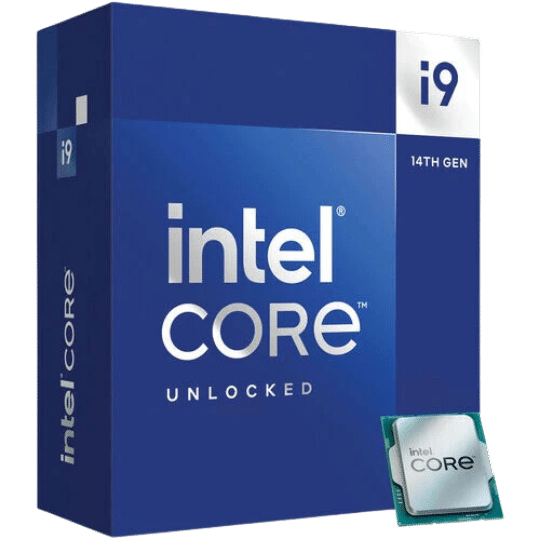

Intel® Core™ i9 processor 14900K
Released October 17, 2023
Intel® Core™ i9 processor 14900K
Key specifications
- Up to DDR5 5600 MT/s
- Intel® Core™ i9 Processors (14th gen)
- Intel® UHD Graphics 770
Available Colors
Pricing
Mid Level
Features and Full Specifications
CPU Specifications
Total Cores
24
# of Performance-cores
8
# of Efficient-cores
16
Total Threads
32
Max Turbo Frequency
6 GHz
Intel® Thermal Velocity Boost Frequency
6 GHz
Memory Specifications
Max Memory Size (dependent on memory type)
192 GB
Memory Types
Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s
Max # of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
ECC Memory Supported ‡
Yes
GPU Specifications
GPU Name
Intel® UHD Graphics 770
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.65 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max # of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100°C
Package Size
45.0 mm x 37.5 mm
