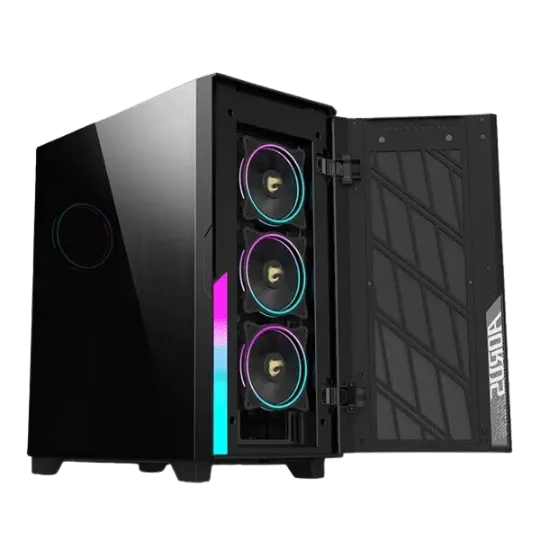

GIGABYTE AORUS C500 GLASS

Released May 27, 2022

GIGABYTE AORUS C500 GLASS

Key specifications
  • Support Motherboards up to E-ATX
  • Up to 420mm Liquid Cooling Compatible
  • Support Vertical GPU Installation
Available Colors
Pricing

Mid Level

Features and Full Specifications

Case

Case Form Factor

Mid Tower

M/B Type

Mini ITX / Micro ATX / ATX / E-ATX

Color

Black

Materials

Steel, Plastic, Glass

Dimensions

H=548 W=250 D=482 mm (Within ± 1% error)

Weight

N.W. 13.4 Kg

Slots

Expansion slots

8 + 3 (Requires PCIE Riser Cable)

5.25" Drive Bays

None

3.5“/2.5” Drive Bays

2

2.5" Drive Bays

2

I/O Panel

USB 3.1 Gen2 Type-C x1 / USB 3.0 x2 / Audio In & Out (supports AC97 /HD Audio)

Fan

Pre-installed Fan

Front : 120mm x3 (ARGB & PWM), Rear : 120mm x1 (ARGB & PWM)

Fan Support

Front : 120mm x3 / 140mm x3, Top : 120mm x3 / 140mm x2, Rear : 120mm x1 / 140mm x1

Radiator Support

Front : Max 420mm, Top : Max 360mm, Rear : 140mm

Other Specs

Power Supply Type

Standard ATX (Not included)

Maximum Compatibility

CPU Height : 190mm, GPU Length : 420mm, PSU Length : 220mm

Vertical GPU Mount

Yes (Default: 73mm total clearance / VGA holder bracket: 160mm total clearance)

Dust Filters

Top, Front, Bottom

RGB Lighting

Yes (Support RGB Fusion 2.0)
