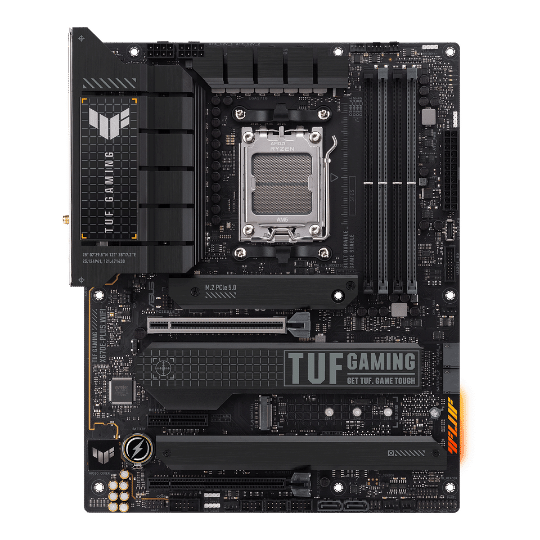

ASUS TUF GAMING X670E-PLUS WIFI

Released September 27, 2022

ASUS TUF GAMING X670E-PLUS WIFI

Released September 27, 2022

ASUS TUF GAMING X670E-PLUS WIFI

Key specifications

 Ready for AMD Ryzen™ 7000 Series desktop processors
14+2 teamed power stages, eight-layer PCB, 8+8 ProCool sockets, alloy chokes and durable capacitors for stable power delivery
PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ (USB4®) header support

Available Colors

Pricing

Mid Level

Features and Full Specifications

Power

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Chipset

AMD X670

Memory

4 x DIMM, Max. 192GB, DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II

Graphics

1 x DisplayPort* 1 x HDMI® port**

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Storage

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD X670 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Ports and Slots

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors: -1 x PCIe 5.0 x16 slot. AMD X670 Chipset: -1 x PCIe 4.0 x16 slot (supports x4 mode), -1 x PCIe 4.0 x4 slots

Ethernet

1 x Realtek 2.5Gb Ethernet TUF LANGuard

Rear USB (Total 10 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®), 5 x USB 3.2 Gen 1 ports (5 x Type-A)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 3 x USB 2.0 headers support additional 6 USB 2.0 ports

Features

ASUS Exclusive Software

Armoury Crate - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization - DIGI+ VRM - Turbo app - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR

UEFI BIOS

ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey
