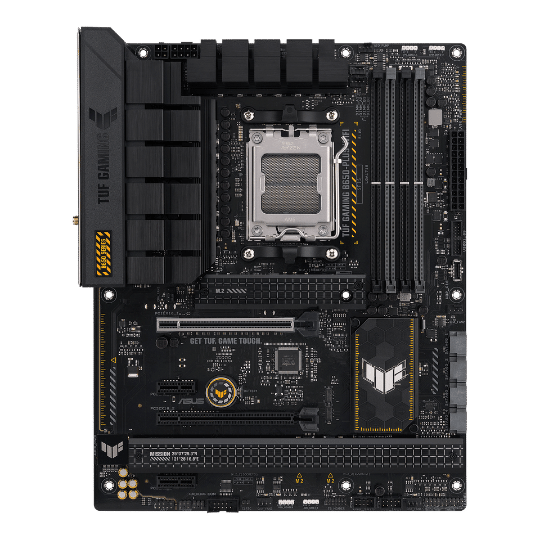

ASUS TUF GAMING B650-PLUS WIFI

Released October 10, 2022

ASUS TUF GAMING B650-PLUS WIFI

Released October 10, 2022

ASUS TUF GAMING B650-PLUS WIFI

Key specifications

12(60A)+2(60A)+2 power stages with enlarged VRM heatsinks
PCIe® 5.0 for M.2 storage
DDR5 memory module support

Available Colors

Pricing

Mid Level

Features and Full Specifications

Power

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 & 8000 Series Desktop Processors*

Chipset

AMD B650

Memory

4 x DIMM, Max. 128GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II

Graphics

1 x DisplayPort* 1 x HDMI® port**

Operating System

Windows® 11, Windows® 10 64-bit

Wireless & Bluetooth

Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2

Storage

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**

AMD B650 Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*** 4 x SATA 6Gb/s ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit

Ports and Slots

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors: 1 x PCIe 4.0/3.0 x16 slot(s). AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode). AMD B650 Chipset: 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode), 2 x PCIe 4.0/3.0 x1 slots.

Ethernet

1 x Realtek 2.5Gb Ethernet TUF LANGuard

Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®), 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®), 4 x USB 2.0 port(s) (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Features

ASUS Exclusive Software

Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR

UEFI BIOS

ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
