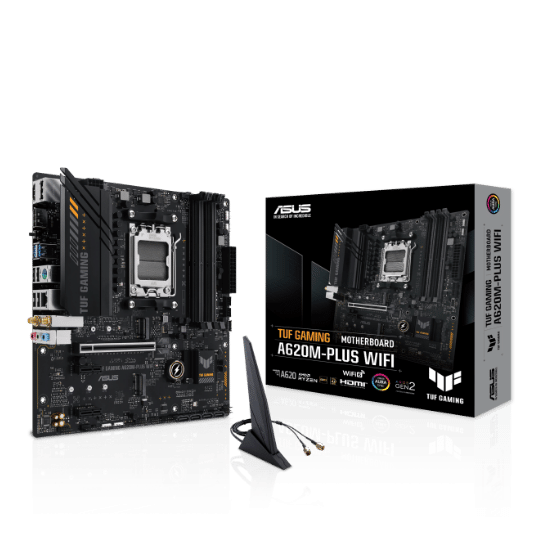

ASUS TUF GAMING A620M-PLUS WIFI

Released April 20, 2023

ASUS TUF GAMING A620M-PLUS WIFI

Released April 20, 2023

ASUS TUF GAMING A620M-PLUS WIFI

Key specifications

Ready for AMD Ryzen™ 7000 Series Desktop Processors
Wi-Fi 6, Realtek 2.5Gb Ethernet, TUF LANGuard
PCIe 4.0, dual M.2 slots, USB 3.2 Gen 1 Type-A, and front USB 3.2 Gen 1 Type-C®

Available Colors

Pricing

Entry Level

Features and Full Specifications

Power

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors

Chipset

AMD A620 Chipset

Memory

4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II

Graphics

2 x DisplayPort** 1 x HDMI™ port***

Operating System

Windows® 11, Windows® 10 64-bit

Wireless & Bluetooth

Wi-Fi 6 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3

Storage

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**

AMD B650 Chipset

4 x SATA 6Gb/s ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Ports and Slots

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode). AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode). AMD A620 Chipset: 2 x PCIe 3.0 x1 slots

Ethernet

1 x Realtek 2.5Gb Ethernet TUF LANGuard

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Features

ASUS Exclusive Software

Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z MyASUS Norton 360 for Gamers (60 Days Free Trial) WinRAR

UEFI BIOS

ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
