GIGABYTE AORUS 16X ASG 2024

Released January 9, 2024

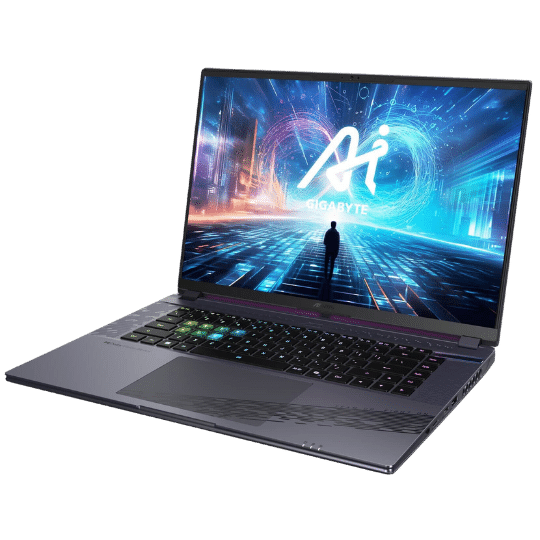

GIGABYTE AORUS 16X ASG 2024

Key specifications
  • Up to Intel® Core™ 14th gen HX processor and Windows 11 system
  • NVIDIA® GeForce RTX™ 40 series laptop GPU at up to 140W Maximum Graphics Power
  • WINDFORCE Infinity Cooling Technology
  • WINDFORCE Infinity Cooling Technology
Available Colors
Pricing

High Level

Features and Full Specifications

Performance

OS

Windows 11 Pro (GIGABYTE recommends Windows 11 Pro for business.) Windows 11 Home, UEFI Shell OS

CPU

Intel® Core™ i9-14900HX Processor (36M Cache, up to 5.8 GHz, 24 cores : 8 P-core and 16 E-core), Intel® Core™ i7-14650HX Processor (30M Cache, up to 5.2 GHz, 16 cores : 8 P-core and 8 E-core)

Video Graphics

NVIDIA® GeForce RTX™ 4070 Laptop GPU 8GB GDDR6, Boost Clock 2175MHz / Maximum Graphics Power 140 W

System Memory

2x DDR5 Slots (DDR5-5600MHz, Up to 64GB)

Storage

2x M.2 SSD slots (Supports 2x PCIe® Gen4x4 NVMe™ M.2 SSD, Up to 4TB)

Display

Display

16.0“ 16:10 WQXGA (2560x1600) 165Hz Display (100% sRGB, Pantone® Validated, TÜV Rheinland-certified, Dolby Vision®, NVIDIA® Advanced Optimus, G-SYNC)

Dimensions (W x D x H)

35.6(W) x 25.4(D) x 2.0~2.7(H) cm / 14.01(W) x 10(D) x 0.78~1.06(H) inch

Weight

~2.3 kg / ~5.07 lb

Built in

Keyboard Type

3-zone RGB Backlit Keyboard, Up to 1.7mm Key-travel (Support N-Key)

Audio

2x 2W Speaker Microphone Dolby Atmos® Smart Amp Technology

Webcam

FHD (1080p) IR Webcam Build-in array Microphone Support Windows Hello Face Authentication

Battery

Li Polymer 99Wh

Connectivity

I/O Left Side

1 x DC in, 1 x RJ-45, 1 x HDMI 2.1, 1 x Type-A support USB3.2 Gen2, 1 x Type-C with Thunderbolt™4 (support USB4, DisplayPort™ 1.4 and Power Delivery 3.0)

I/O Right Side

1 x Type-A support USB3.2 Gen2, 1 x Type-C support USB3.2 Gen2, DisplayPort™ 1.4, 1 x MicroSD (UHS-II), 1 x Audio Jack support mic / headphone combo

Communications

Wi-Fi: Intel® Wi-Fi 7 Wireless (802.11be 2x2), LAN: 1G, Bluetooth: Bluetooth® V5.4
