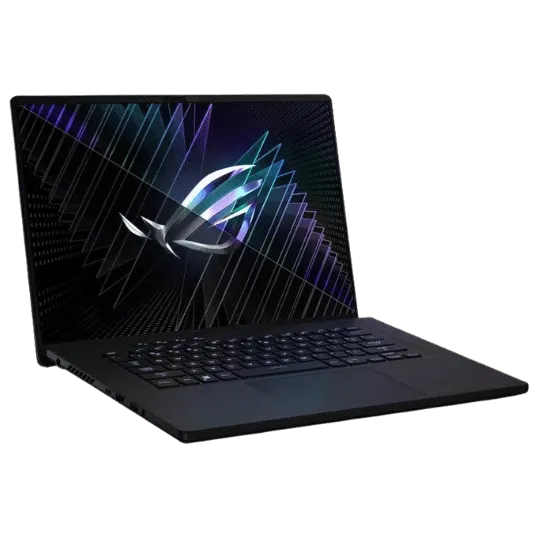

ROG Zephyrus M16 (2023) GU604 GU604VZ-NM049WS

Released January 3, 2023

ROG Zephyrus M16 (2023) GU604 - GU604VZ- NM049WS

Key specifications
  • NVIDIA® GeForce RTX™ 4080 Laptop GPU ROG Boost
  • ROG Nebula HDR Display
  • Windows 11 Pro. Up to an Intel® Core™ i9-13900H processor
  • ROG Intelligent Cooling with Tri-Fan Technology and a full-width heatsink
Available Colors
Pricing

High Level

Features and Full Specifications

Power

Processor

13th Gen Intel® Core™ i9-13900H Processor 2.6 GHz (24M Cache, up to 5.4 GHz, 14 cores: 6 P-cores and 8 E-cores)

Operating System

Windows 11 Home

Graphics

NVIDIA® GeForce RTX™ 4080 Laptop GPU ROG Boost: 1715MHz* at 145W (1665MHz Boost Clock+50MHz OC, 120W+25W Dynamic Boost, 125W+25W in Manual Mode) 12GB GDDR6

Memory

16GB DDR5-4800 SO-DIMM x 2, Max Capacity: 64GB, Support dual channel memory

Storage

2TB PCIe® 4.0 NVMe™ M.2 Performance SSD

Battery

90WHrs, 4S1P, 4-cell Li-ion, ø6.0, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100~240C AC 50/60Hz universal, TYPE-C, 100W AC Adapter, Output: 20V DC, 5A, 100W, Input: 100~240V AC 50/60Hz universal

Keyboard and Touchpad

Keyboard

Backlit Chiclet Keyboard

Touchpad

1-Zone RGB Touchpad

Size and Dimesions

Display

ROG Nebula Display 16-inch QHD+ 16:10 (2560 x 1600, WQXGA) Mini LED anti-glare display, DCI-P3: 100%, Refresh Rate: 240Hz, Response Time: 3ms, G-Sync Pantone Validated MUX Switch + NVIDIA® Advanced Optimus

Dimensions

35.5 x 24.6 x 2.11 ~ 2.29 cm (13.98" x 9.69" x 0.83" ~ 0.90"), (W x D x H)

Weight

2.30 Kg (5.07 lbs)

Camera and Audio

Camera

1080P FHD IR Camera for Windows Hello

Audio

Smart Amp Technology, Dolby Atmos, AI noise-canceling technology, Hi-Res certification, Built-in 3-microphone array, 2x 2W Tweeter, 2x 2W dual-force woofer with Smart Amp Technology,

Wireless Connectivity and Ports

Wireless Connectivity

Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

Ports

1x 3.5mm Combo Audio Jack, 1x HDMI 2.1, 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery / G-SYNC, 1x RJ45 LAN port, 1x Thunderbolt™ 4 support DisplayPort™, 1x HDMI 2.1 FRL, 2x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery, 1x Thunderbolt™ 4 support DisplayPort™ / power delivery

Features

Xbox Game Pass

Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Security

BIOS Administrator Password and User Password Protection, Kensington Security Slot™, Trusted Platform Module (Firmware TPM), McAfee® 30 days free trial
