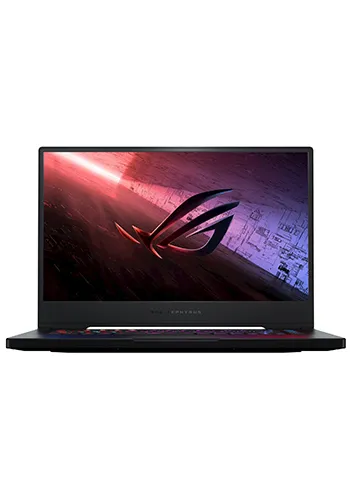

ROG Zephyrus M15 GU502 GU502LU-AZ066TS

Released October 24, 2020

ROG Zephyrus M15 GU502 GU502LU-AZ066TS

Released October 24, 2020

ROG Zephyrus M15 GU502 GU502LU-AZ066TS

Key specifications

Intel® Core™ i7-10750H Processor 2.6 GHz
8GB DDR4 Max Capacity : 24GB
NVIDIA® GeForce® GTX 1660Ti 6GB GDDR6 1TB
76WHrs, 4S1P 4-cell Li-ion

Available Colors

Pricing

High Level

Features and Full Specifications

Processor

Intel® Core™ i7-10750H Processor 2.6 GHz (12M Cache, up to 5.0 GHz, 6 cores)

Battery

Battery Life

76WHrs, 4S1P,

Battery Cell

4-cell Li-ion

Power Supply

ø6.0, 230W AC Adapter, Output: 19.5V DC, 11.8A, 230W, Input: 100~240V AC, 50/60Hz universal TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal

Network and Communication

Communication

Wi-Fi 6(802.11ax)+Bluetooth 5.1 (Dual band) 2*2;(*BT version may change with OS upgrades.) -RangeBoost

Memory and Storage

Memory

8GB DDR4 on board 8GB DDR4 SO-DIMM(3200MHz for i7-10870H/i7-10875H/i9-10980HK and 2933MHz for i5-10300H/i7-10750H) Max Capacity : 24GB

Storage

1TB M.2 NVMe™ PCIe® 3.0 SSD

Camera

FHD (1920 x 1080) 16:9

Video

Graphics

NVIDIA® GeForce® GTX 1660Ti 6GB GDDR6

Sound

Audio

ESS Smart Amp Technology Built-in array microphone Built-in speaker

Ports and Connectivity

I/O Ports

1x Headphone out, 1x MIC in 1x HDMI 2.0b 2x USB 3.2 Gen 1 Type-A 1x USB 3.2 Gen 2 Type-A 1x Thunderbolt™ 3 support DisplayPort™ / power delivery / G-SYNC 1x RJ45 LAN port

Display

15.6-inch FHD (1920 x 1080) 16:9 anti-glare display sRGB: 100% Adobe: 75.36% Refresh Rate: 240Hz Response Time: 3ms IPS-level Pantone Validated

Misc

Colors

Black
