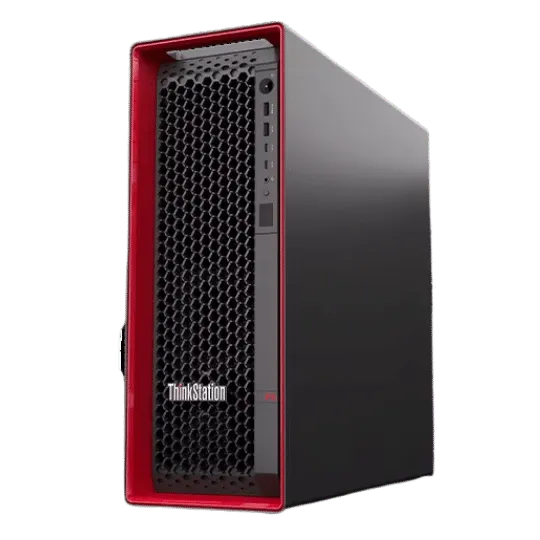

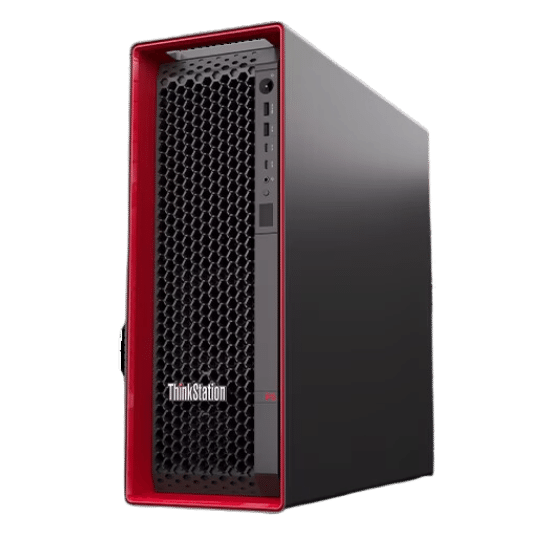

Lenovo ThinkStation P5 Workstation

Released May 3, 2022

Lenovo ThinkStation P5 Workstation

Key specifications
  • 13th Gen Intel® Core™ processor, optional discrete graphics
  • Revolutionary powerful, durable 3.9L form factor
  • Supports advanced remote monitoring & systems management
Available Colors
Pricing

High Level

Features and Full Specifications

Performance

Processor

Up to Intel vPro® with Intel® Xeon® W7-2495X Processor with vPro™ (24 Cores, 2.5GHz, 48MB Cache, 225W)

Operating System

Windows 11 Pro for Workstations - Lenovo recommends Windows 11 Pro for business, Windows 11 Pro for Workstations (preinstalled with Windows 10 Pro for Workstations Downgrade), Ubuntu® Linux®, Red Hat® Enterprise Linux® (certified)

Graphics

Optional: Choose up to 2 in total: NVIDIA® RTX™ A6000 (48GB GDDR6), NVIDIA® RTX™ 6000 Ada (48GB GDDR6), NVIDIA® RTX™ A5500 (24GB GDDR6), NVIDIA® RTX™ A4500 (20GB GDDR6), NVIDIA® RTX™ A4000 (16GB GDDR6), NVIDIA® RTX™ A2000 (12GB GDDR6), NVIDIA® T1000 (8GB GDDR6), NVIDIA® T400 (4GB GDDR6)

Memory

Up to 512GB DDR5 RDIMM 4800MHz

Storage

Up to 6 drives in total: Supports up to 3 maximum, 4TB M.2 NVMe PCIe SSD, Supports up to 3 maximum, 12TB 3.5″ SATA 7200rpm

RAID

M.2 = 0 / 1 / 10 / 5* SATA = 0 / 1 / 5*

CONNECTIVITY

Ports / Slots

Front: Headphone / mic combo, Optional Front: USB-A 3.2 Gen 2 (10Gbps), USB-A 3.2 Gen 2 (10Gbps, with 1 x always-on charging), 2 x USB-C 3.2 Gen 2 (10Gbps) Rear: 2 x USB-A 2.0 , 3 x USB-A 3.2 Gen 2 (10Gbps), USB-C 3.2 Gen 2x2 (20Gbps), RJ45 Gigabit Ethernet, Line in, Line out

Wireless

Intel® WiFi 6E AX211 (2x2ax)* with vPOnboard Ethernet, Gigabit Ethernet, Intel Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN, Optional Ethernet: Bitland RTL8168H 1000M PCIE Ethernet Adapter, Intel® I210-T1 Single Port Gigabit Ethernet Adapter, Intel® I350-T2 Dual Port Gigabit Ethernet Adapter, Intel® I350-T4 Quad Port Gigabit Ethernet Adapter, Intel® X550-T2 Ethernet Network Adapter, Intel® X710-DA2 Dual Port 10G Ethernet Network Adapter, Optional WLAN: Intel® WiFi 6E AX211 2x2ax (with Internal Wi-Fi Antenna) + Bluetooth® 5.2***, Intel vProro + Bluetooth® 5.3**

DESIGN

Dimensions (H x W x D)

440mm x 165mm x 453mm / 17.3″ x 6.5″ x 17.8″

Weight

Up to 19kg / 41.9lbs

Color

Black with iconic ThinkPad red components

SUSTAINABILITY

Material

System: 65% post-consumer content (PCC) recycled plastic in Front and Rear Bezel, 35% PCC recycled plastic inside the chassis Packaging: Carton: 90% Recycled and/or FSC certified content, Cushion: 90% Recycled EPE

Certifications / Registries

ENERGY STAR® 8.0 * EPEAT® Gold, where applicable** RoHS Compliant, TCO 9.0, 80 Plus Platinum Power Supply

OTHER INFORMATION

ThinkShield Security

Trusted Platform Module (TPM) 2.0, TCG certified, Self-healing BIOS, Supervisor (blocks & prevents access to BIOS setup data), System Management Password (functions similar to Supervisor but with less authority), Power-on Password (prompts for password directly after pressing the power button), Firmware Resiliency, UEFI secure boot support, HDD password protection for HDD data, Windows UEFI firmware update support, Windows Device Guard support, Smart USB Protection, Chassis Intrusion Switch, Kensington Security Slot™, Optional: Access panel lock, padlock loop, BIOS Guard, Boot Guard

Power Supply

750W (92% efficient), 1000W (92% efficient)

ISV Certifications

Adobe® Altair® ANSYS® Autodesk® AVID® Barco® Bentley® Dassault® McKesson® Nemetschek® PTC® Siemens®

Preloaded Software

Lenovo Commercial Vantage (with Windows OS only), Office 365 trial (with Windows OS only)
