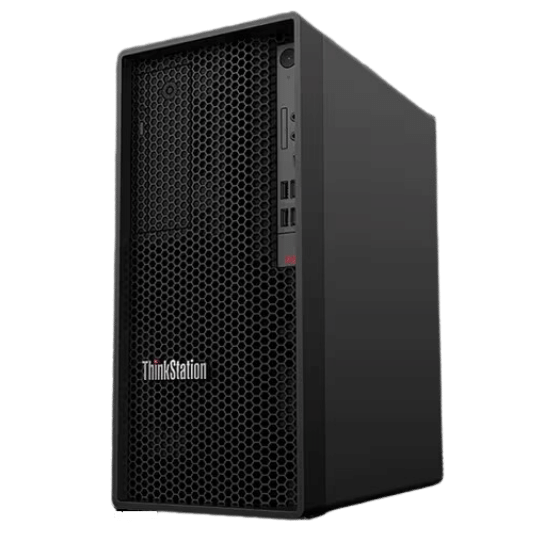

Lenovo ThinkStation P360 Tower Workstation

Released June 29, 2023

Lenovo ThinkStation P360 Tower Workstation

Key specifications
  • NVIDIA®professional graphics support & VR-ready option
  • High-performance with 12th Gen Intel®Core™ processors
  • Configurable with dual M.2 PCIe Gen 4 & one Gen 3 NVMe SSD storage
Available Colors
Pricing

High Level

Features and Full Specifications

Performance

Processor

Up to 12th Gen Intel®Core™ i9 12900K (3.20GHz, up to 5.2GHz max turbo, 16 cores, 24 threads, 30MB cache)

Operating System

Windows 11 Pro - Lenovo recommends Windows 11 Pro for business, Windows 11 Home, Ubuntu®Linux®(select versions available via preload), Red Hat®Enterprise Linux®(certified)

Graphics

NVIDIA®RTX™ A5000 24GB, NVIDIA®RTX™ A4500 20GB, NVIDIA®RTX™ A4000 16GB, NVIDIA®RTX™ A2000 12GB, NVIDIA®T1000 8GB, NVIDIA®T600 4GB, NVIDIA®T400 4GB

Memory

Up to 32GB DDR5 4000MHz, ECC or non-ECC (supports up to 128GB total)

Storage

Up to 7 drives total: Supports up to 3 maximum, 2TB (4TB*) M.2 NVMe PCIe Gen4 SSD, Supports up to 2 maximum, 6TB 3.5" SATA 7200rpm, Supports up to 4 maximum, 1TB 2.5" SATA HDD

Preloaded Software

Lenovo Commercial Vantage (Windows OS configurations only), Office 365 trial (Windows OS only)

CONNECTIVITY

Ports / Slots

Front: 4 x USB-A 3.2 Gen 2, USB-C 3.2 Gen 2, Headphone / mic combo, Mic jack, Optional: SD card reader

Rear

4 x USB-A 3.2 Gen 1, Audio out, 2 x DisplayPort, Optional: Flexible IO Port (DisplayPort/HDMI/USB-C), HDMI, RJ45, Optional: Serial port, Optional: Thunderbolt™ 4, Optional: PS/2, Optional: Parallel port, Optional: VGA, Optional USB-C 3.2 Gen 2x2 PCIe card, Optional: Dual USB-A 3.2 Gen 2 PCIe card

Optional Connectivity

Intel®AX211 AC WiFi 6E* + Bluetooth®5.2, Intel AX201 AC WiFi 6 + Bluetooth®5, Intel WiFi w/ Bluetooth®External Antenna Kit, RJ45

DESIGN

Dimensions (H x W x D)

376mm x 170mm x 315.4mm / 14.8" x 6.7" x 12.4"

Weight

9.4kg / 20.7lbs

OTHER INFORMATION

Security

Trusted Platform Module (TPM) 2.0, Self-healing BIOS, Supervisor (blocks & prevents access to BIOS setup data), System Management Password (functions similar to Supervisor but with less authority), Power-on Password (prompts for password directly after pressing the power button), UEFI secure boot support, HDD password protection for HDD data, Windows UEFI firmware update support, Windows Device Guard support, Smart USB Protection, Kensington Security Slot™, Optional: Access panel lock, padlock slot, BIOS Guard, Boot Guard

Certifications / Registries

EPEAT®Gold, ENERGY STAR®8, RoHS compliant, 80 PLUS Platinum (500W, 750W), TCO-certified, Gen 9

ISV Certifications

Adobe®, Altair®, ANSYS®, Autodesk®, AVID®, Barco®, Bentley®, Dassault®, McKesson®, Nemetschek®, PTC®, Siemens®
