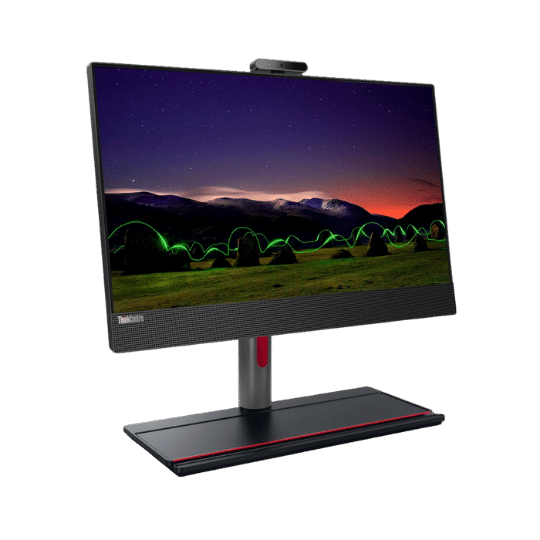

Lenovo ThinkCentre M90a Gen 3 AIO (23" Intel)
Released July 8, 2022

Lenovo ThinkCentre M90a Gen 3 AIO (23" Intel)
Released July 8, 2022
Lenovo ThinkCentre M90a Gen 3 AIO (23" Intel)
Key specifications
- 12th Gen Intel® Core™ i9 with Intel vPro® platform
- NVIDIA® graphics
- AI noise-suppression and Dolby Atmos® audio
- Intelligent Cooling Engine (ICE) 4.0
Available Colors
High Level
Features and Full Specifications
Tech Specs
Up to 12th Gen Intel® Core™ i9 with Intel vPro® platform
Up to Windows 11 Pro
Up to 64GB 3200Mhz, 2x SODIMM DDR4
Up to 1TB SSD, Up to 2TB 2.5" HDD
Intel® UHD Graphics 770, Intel® UHD Graphics 730, Intel® UHD Graphics 710, Optional: NVIDIA® GeForce® MX550 2GB GDDR6
23.8" FHD (1920 x 1080) IPS, 10-point touch, near-edgeless, antiglare, 72% NTSC, 60Hz refresh rate, 23.8" FHD (1920 x 1080) IPS, near-edgeless, antiglare, 72% NTSC, 60Hz refresh rate
Size
Without stand: Starting from 350mm x 540mm x 49mm / 13.78" x 21.26" x 1.93", With Full Function Monitor Stand: Starting from 374.15mm x 539.6mm x 217.31mm / 14.73" x 21.24" x 8.56", With optional UltraFlex IV Stand: Starting from 367.13mm x 539.6mm x 216.32mm / 14.45" x 21.24" x 8.52"
Without stand: Starting from 6.056 kg / 13.35lbs, With Full Function Monitor Stand: Starting from 8.555Kg / 18.92lbs, With optional UltraFlex IV Stand: Starting from 8.048Kg / 17.74lbs
Full Function Monitor Stand Tilt: -5 to 20 degrees, Lift: 110mm, Pivot: 90 degrees, Swivel: 90 (±1) degrees, 45 degrees left and 45 degrees right, Optional: UltraFlex IV Stand Tilt: -5 to 70 degrees, Lift: 182.8mm
Ports and Slots
3 x USB-A 3.2 Gen 2, Optional: 3-in-1 card reader, Headphone / mic combo, USB-C 3.2 Gen 2, 3 x USB-A 3.2 Gen 1, DisplayPort 1.4 (out), RJ45, HDMI in / out
WiFi, PCIe Gen 4 SSD
Slim optical disk drive (ODD) 2 x 2.5" HDD (1 x default, 1 x optional from ODD bay)
Others
Intel® WiFi 6E* 2x2 AX, Intel® WiFi 6 2x2 AX
2 x 3W speakers with Dolby Atmos®, Optional: Conference call base
Optional: RGB camera and dual-array mic, Optional: 5M RGB + IR hybrid camera and dual-array mic
Intel® Gaussian & Neural Accelerator (GNA) - for AI speech & audio apps, such as neural noise cancellation
ENERGY STAR® 8.0, EPEAT™ Gold, TCO 9.0, TCO Certified Edge, TÜV Rheinland Low Blue Light, TÜV Rheinland Flicker Free, Ultra-Low Noise
