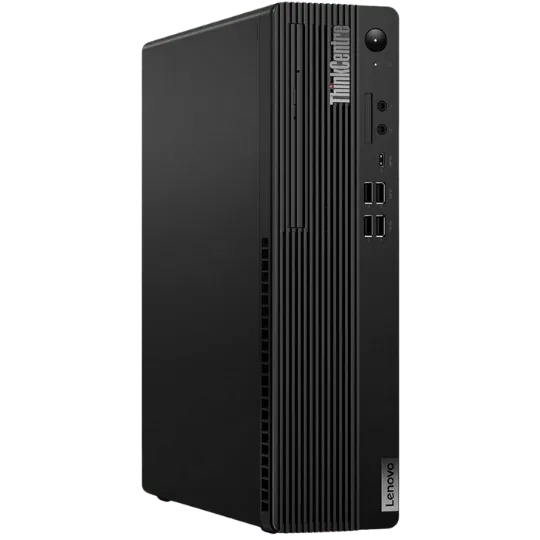

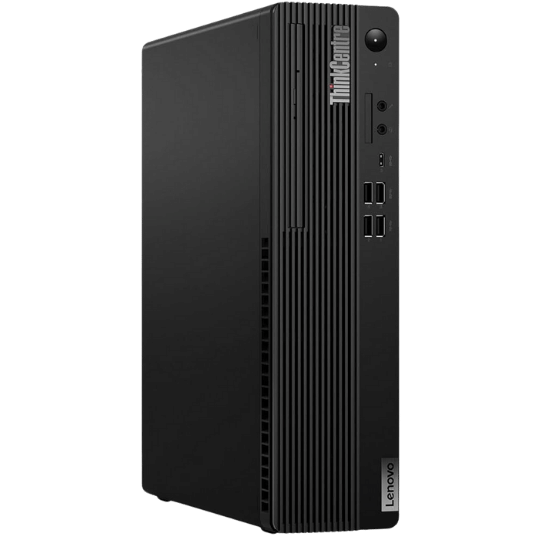

Lenovo ThinkCentre M80s Gen 3 (Intel)

Released May 23, 2023

Lenovo ThinkCentre M80s Gen 3 (Intel)

Key specifications
  • 12th Generation Intel® Core™ i5
  • 8 GB DDR5-4400MHz (UDIMM)
  • 500 GB 7200rpm HDD 2.5" SATA 7mm
Available Colors
Pricing

Mid Level

Features and Full Specifications

Tech Specs

Processor

Up to 12th Gen Intel® Core™ i9 vPro® Enterprise

Operating System

Up to Windows 11 Pro, Windows 11 Pro Downgrade, Windows 10 (IoT)

Memory

Up to 128GB DDR5 UDIMM 4400MHz

Storage

Dual storage: SSD + HDD, Up to 2 X 2TB M.2 PCIe SSD, Up to 2TB 7200rpm SATA HDD

Graphics

Intel® UHD Graphics 770 / 730 / 710, Intel® Iris® Xe MAX 100 Graphics 2GB, AMD Radeon™ RX 6400 4GB

Size

Dimensions (H x W x D)

339.5mm x 92.5mm x 297.7mm / 13.4" x 3.6" x 11.7"

Weight

Starting at 5.3kg / 11.7lbs

Color

Raven Black

Ports and Slots

Front

USB-C 3.2 Gen 2 (15W Charging), 2 x USB-A 3.2 Gen 2, 2 x USB-A 3.2 Gen 1, Optional: 3-in-1 card reader, Headphone / mic combo, Mic

Rear

4 x USB-A 3.2 Gen 1, Flex IO (DP / HDMI / USB-C / VGA), HDMI 2.1 TMDS, 2 x DisplayPort 1.4, LAN (1G), Headphone, Optional: 2 x Serial, Optional: PS2, Optional: Parallel, Optional: USB-A 2.0

M.2 Slots

2 x M.2 SSD Gen 4, M.2 WiFi

Expansion Slot

PCIe x16 Gen 4 PCIe x16 (x4 link) PCIe x1

Internal Bay

3.5" HDD 2.5" HDD

External Bay

Slim Optical Disc Drive

Others

Connectivity

Intel® WiFi 6E1 2x2 AX, Intel® WiFi 6 2x2 AX, Bluetooth® 5.2

Power Supply Unit (PSU)

380W, 92%, 310W, 92%, 260W, 90%, 180W, 85%

Certifications

ENERGY STAR® 8.0, Up to EPEAT™ Gold*, RoHS, ERP LOT3, TÜV Low Noise, TCO 9.0*
