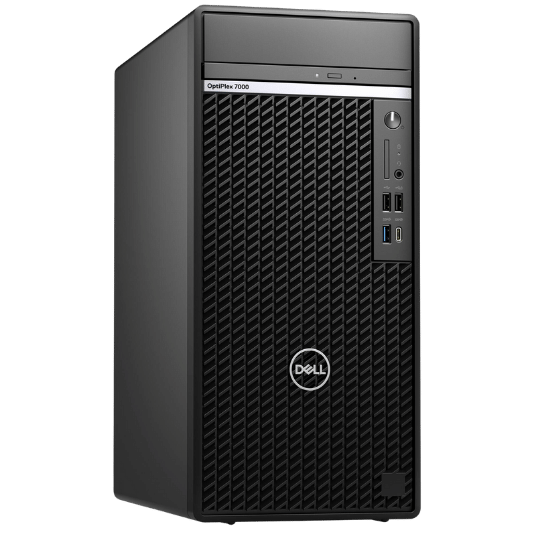

Dell OptiPlex Tower

Released October 9, 2022

Dell OptiPlex Tower

Key specifications
  • 13th Gen Intel® core processor
  • Up to 32GB of next generation DDR4 memory.
  • iGFX support for up to 4 simultaneous displays with up to 4K resolution.
  • Ready for commercial VR consumption.
Available Colors
Pricing

High Level

Features and Full Specifications

Platform

Processor

Intel® Celeron® G6900 (4 MB cache, 2 cores, 4 threads, up to 3.40 GHz, 46 W), Intel® Pentium® G7400 (6 MB cache, 2 cores, 4 threads, up to 3.70 GHz, 46 W), 13th Generation Intel® Core™ i3-13100 (12 MB cache, 4 cores, 8 threads, 3.40 GHz to 4.50 GHz, 60 W), 13th Generation Intel® Core™ i5-13400 (20 MB cache, 10 cores, 16 threads, 2.50 GHz to 4.60 GHz, 65 W), 13th Generation Intel® Core™ i5-13500 (24 MB cache, 14 cores, 20 threads, 2.50 GHz to 4.80 GHz, 65 W), 13th Generation Intel® Core™ i5-13600 (24 MB cache, 14 cores, 20 threads, 2.70 GHz to 5.00 GHz, 65 W),

Operating System

Windows 11 Home, Windows 11 Pro, Windows 11 Pro National Education, Windows 11 CMIT Government Edition (China only), Windows 10 Pro (Includes free upgrade to Windows 11 Pro), Kylin Linux® Desktop version 10.1 (China only), Ubuntu®Linux® 20.04 LTS, 64-bit

Video Card

Intel® UHD Graphics 770 13th Generation Intel® Core™ i5-13500 and i5-13600 processors, Intel® UHD Graphics 730 13th Generation Intel® Core™ i5-13100 and i5-13400 processors, Intel® UHD Graphics 710 with Intel® Celeron® G6900 and Intel® Pentium® Gold G7400 processors, AMD RadeonTM RX6300, 2 GB, GDDR6, AMD RadeonTM RX6500, 4 GB, GDDR6

Memory

Memory

4 GB, 1 x 4 GB, DDR4, 3200 MT/s, single-channel, 8 GB, 1 x 8 GB, DDR4, 3200 MT/s, single-channel, 8 GB, 2 x 4 GB, DDR4, 3200 MT/s, dual-channel, 16 GB, 1 x 16 GB, DDR4, 3200 MT/s, single-channel, 16 GB, 2 x 8 GB, DDR4, 3200 MT/s, dual-channel, 32 GB, 1 x 32 GB, DDR4, 3200 MT/s, single-channel, 32 GB, 2 x 16 GB, DDR4, 3200 MT/s, dual-channel, 64 GB, 2 x 32 GB, DDR4, 3200 MT/s, dual-channel

Storage

2.5-inch, 1 TB, 5400 RPM, SATA, HDD, 2.5-inch, 2 TB, 5400 RPM, SATA, HDD, 2.5-inch, 500 GB, 7200 RPM, SATA, HDD, 2.5-inch, 1 TB, 7200 RPM, SATA, HDD, 2.5-inch, 500 GB, 7200 RPM, SATA, OPAL SED FIPS, HDD, 3.5-inch, 1 TB, 7200 RPM, SATA, HDD, 3.5-inch, 2 TB, 7200 RPM, SATA, HDD, M.2 2230, 512 GB, PCIe NVMe, SSD, Class 25, M.2 2230, 1 TB, PCIe NVMe, SSD, Class 25, M.2 2230, 256 GB, PCIe NVMe, SSD, Class 35, M.2 2230, 512 GB, PCIe NVMe, SSD, Class 35, M.2 2230, 1 TB, PCIe NVMe, SSD, Class 35, M.2 2230, 256 GB, PCIe NVMe, Opal Self-Encrypting drive, Class 35, M.2 2280, 512 GB, PCIe NVMe, SSD, Class 40, M.2 2280, 1 TB, PCIe NVMe, SSD, Class 40, M.2 2280, 512 GB, PCIe NVMe, SSD, self-encrypting drive, Class 40, M.2 2280, 1 TB, PCIe NVMe, SSD, self-encrypting drive, Class 40

Ports

Front

2 USB 3.2 Gen 1 ports, 2 USB 2.0 ports, 1 Universal audio port

Rear

2 USB 3.2 Gen 1 ports, 2 USB 2.0 ports with Smart Power On, 1 HDMI 1.4b port (1920x1200@60Hz max. resolution), 1 DisplayPort 1.4 ports (HBR2), 1 Optional video port (HDMI 2.1/Displayport 1.4a (HBR3)/VGA), 1 Optional Serial port, 1 RJ45 Ethernet Port 10/100/1000 Mbps

Slots

1 M.2 2230 slot for WiFi and Bluetooth combo card, 1 M.2 2230/2280 slot for solid-state drive, 3 SATA 3.0 slots for 2.5-inch/3.5-inch hard drive and slim optical drive, 1 Full-height Gen 3 PCIe x16 slot, 2 Full-height Gen 3 PCIe x1 slot

Optical Drive

Dell Slimline 16x DVD -/+ RW (optional)

Dimensions

Size

Height: 324.30 mm (12.77 in.), Width: 154.00 mm (6.06 in.), Depth: 292.20 mm (11.50 in.)

Weight

6.52 kg (14.38 lb)

Misc

Wireless*

Intel® Wi-Fi 6E AX211, 2x2, 802.11ax, Bluetooth® wireless card, Realtek Wi-Fi 5 RTL8821CE, 1x1, 802.11ac, MU-MIMO, Bluetooth® wireless card, Realtek Wi-Fi 6 RTL8852BE, 2x2, 802.11ax, MU-MIMO, Bluetooth® wireless card

Power

180 W internal Power Supply Unit (PSU), 85% Efficient, 80 Plus Bronze, 300 W internal Power Supply Unit (PSU), 92% Efficient, 80 Plus Platinum
