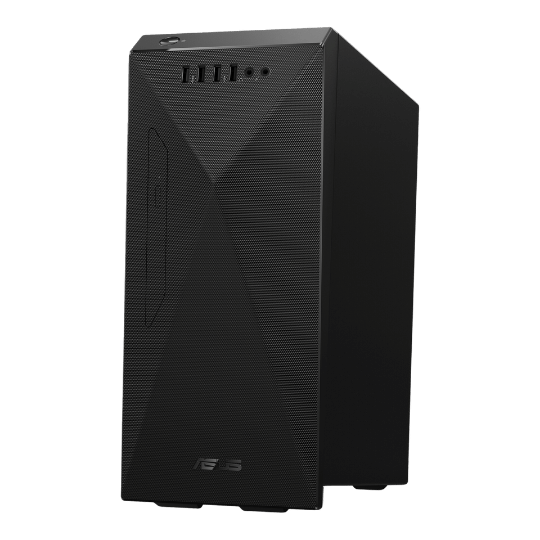

ASUS S501ME

Released September 5, 2023

ASUS S501ME

Key specifications
  • 13th Gen Intel® Core™ processor
  • up to 64 GB DDR4-3200 memory
  • Up to 2 TB + 1 TB HDD + SSD
Available Colors
Pricing

High Level

Features and Full Specifications

Performance

Processor

Intel® Core™ i5-13400 Processor 2.5GHz (20M Cache, up to 4.6GHz, 10 cores), Intel® Core™ i5-13400F Processor 2.5GHz (20M Cache, up to 4.6GHz, 10 cores), Intel® Core™ i7-13700 Processor 2.1GHz (30M Cache, up to 5.2GHz, 16 cores), Intel® Core™ i3-13100 Processor 3.4GHz (12M Cache, up to 4.5GHz, 4 cores)

Chipset

Intel® B760 Chipset

Operating System

Windows 11 Home - ASUS recommends Windows 11 Pro for business, Free Upgrade to Windows 11¹ (when available, see below)

Graphics

NVIDIA® GeForce® GTX1660TI 6GB GDDR6 : 2x DP, 2x HDMI, NVIDIA® GeForce® RTX3050 8GB GDDR6 : 3x DP, 1x HDMI, NVIDIA® GeForce® RTX3060 12GB GDDR6 : 3x DP, 1x HDMI, NVIDIA® GeForce RTX™4060TI DUAL 8GB GDDR6 : 3xDP, 1x HDMI, NVIDIA® GeForce® GT1030 2GB : 1x DVI, 1x HDMI

Memory

2x DDR4 U-DIMM slot, 8GB DDR4 U-DIMM, Memory max up to:64GB, 2x DDR4 U-DIMM slot, 8GB DDR4 U-DIMM x 2, Memory max up to:64GB, 2x DDR4 U-DIMM slot, 16GB DDR4 U-DIMM, Memory max up to:64GB, 2x DDR4 U-DIMM slot, Memory max up to:64GB, 2x DDR4 U-DIMM slot, 16GB DDR4 U-DIMM x 2, Memory max up to:64GB

Storage

512GB M.2 NVMe™ PCIe® 4.0 SSD, 1TB SATA 7200RPM 3.5" HDD, 256GB M.2 NVMe™ PCIe® 4.0 SSD, 1TB SATA 7200RPM 3.5" HDD, 512GB M.2 NVMe™ PCIe® 4.0 SSD, 1TB M.2 NVMe™ PCIe® 4.0 SSD, 512GB M.2 NVMe™ PCIe® 3.0 SSD, 1TB M.2 NVMe™ PCIe® 3.0 SSD, 2TB SATA 7200RPM 3.5" HDD, 256GB M.2 NVMe™ PCIe® 4.0 SSD, 256GB M.2 NVMe™ PCIe® 4.0 SSD

Size and Weight

Weight

05.90 kg (13.01 lbs)

Dimensions (W x D x H)

16.00 x 31.89 x 36.78 cm (6.30" x 12.56" x 14.48")

Color

Black

Ports and Comms

Audio

High Definition 7.1 Channel Audio

WiFi

Wi-Fi 5(802.11ac) (Dual band) 1*1 + Bluetooth® 5.1 Wireless Card Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card

Ports

1x RJ45 Gigabit Ethernet, 1x HDMI 1.4, 1x VGA Port, 1x Display port 1.4, 2x PS2, 3 x Audio jacks, 2x USB 2.0 Type-A, 2x USB 3.2 Gen 1 Type-A

Expansion Slots(includes used)

2x M.2 connector for storage, 2x PCIe® 3.0 x 1, 1x PCIe® 4.0 x 16, 1x M.2 connector for WiFi, 2x DDR4 U-DIMM slot, 4 x SATA 6.0Gb/s ports

Power Supply

300W power supply (peak 350W), 500W power supply (80+ Bronze, peak 550W), 300W power supply (80+ Bronze, peak 350W)

Others

Security

Kensington Security Slot™ McAfee LiveSafe™ 30-day trial Trusted Platform Module (TPM) 2.0

Ecolabels & Compliances

RoHS, REACH

Optical Drive (Optional)

DVD writer 8X, Without optical drive
