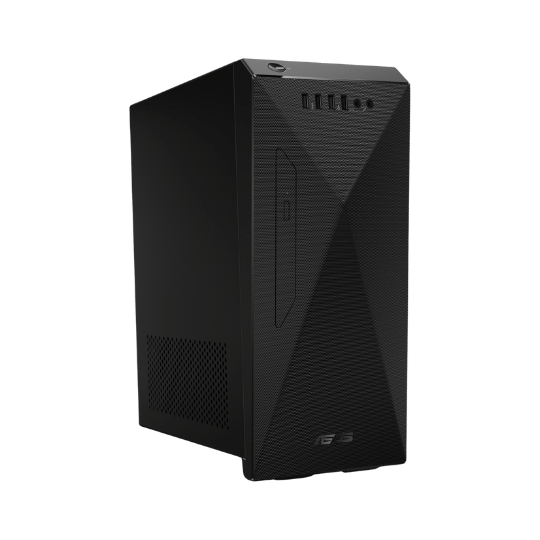

ASUS S501MD

Released July 30, 2022

ASUS S501MD

Key specifications
  • Windows 11 Pro
  • 12th Gen Intel® CPU
  • Up to 64 GB DDR4 RAM
  • Up to 2 TB + 1 TB HDD + SSD
Available Colors
Pricing

High Level

Features and Full Specifications

Specs

Processor

ntel® Core™ i5-12400 Processor 2.5 GHz (18M Cache, up to 4.4 GHz, 6 cores) Intel® Core™ i7-12700 Processor 2.1 GHz (25M Cache, up to 4.9 GHz, 12 cores) Intel® Pentium Gold ® G7400 Processor 3.7GHz (6M Cache, 2 cores) Intel® Core™ i3-12100 Processor 3.3 GHz (12M Cache, up to 4.3 GHz, 4 cores)

Operating System

Windows 11 Home - ASUS recommends Windows 11 Pro for business

Graphics

NVIDIA® GeForce® GT1030 2GB : 1x DVI, 1x HDMI

Memory

2x DDR4 U-DIMM slot, 8GB DDR4 U-DIMM, Memory max up to:64GB

Storage

1TB SATA 7200RPM 3.5" HDD, 256GB M.2 2280 NVMe™ PCIe® 3.0 SSD 256GB M.2 2280 NVMe™ PCIe® 3.0 SSD

Chipset

Intel® B660 Chipset

Audio and Connectivity

Audio

High Definition 7.1 Channel Audio

Connectivity

Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card

Ports

Front I/O Ports

1x Headphone 1x MIC in 2x USB 2.0 Type-A 1x USB 3.2 Gen 1 Type-C 1x USB 3.2 Gen 1 Type-A

Rear I/O Ports

1x RJ45 Gigabit Ethernet 1x HDMI 1.4 1x VGA Port 1x Display port 1.4 2x PS2 3 x Audio jacks 2x USB 2.0 Type-A 2x USB 3.2 Gen 1 Type-A

Size

Dimensions (W x D x H)

16.00 x 31.89 x 36.78 cm (6.30" x 12.56" x 14.48")

Weight

05.90 kg (13.01 lbs)
