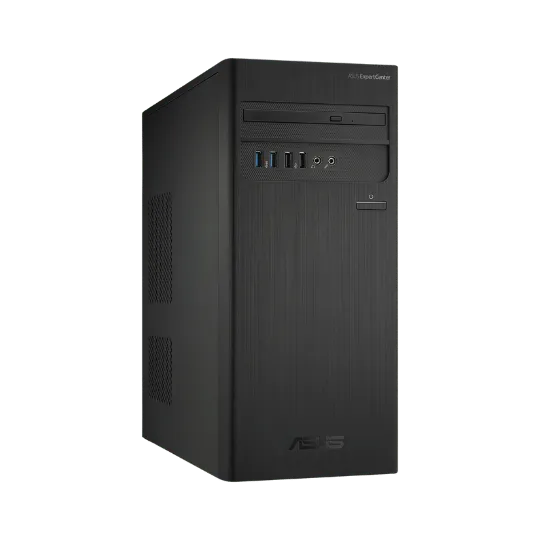

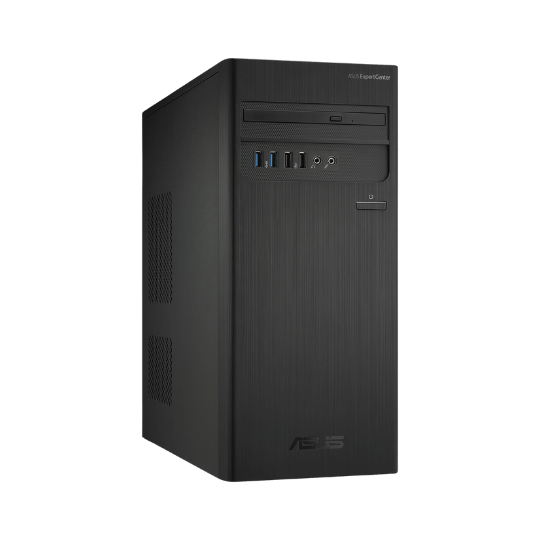

ASUS ExpertCenter D5 Tower D500TC

Released July 29, 2023

ASUS ExpertCenter D5 Tower D500TC

Key specifications
  • Windows 11 Pro
  • 11th Gen Intel® CPU
  • Up to 64 GB DDR4 RAM
  • Up to 4 TB + 1 TB HDD + SSD
Available Colors
Pricing

High Level

Features and Full Specifications

Specs

Processor

Intel® Core™ i5-11400 Processor 2.6 GHz (12M Cache, up to 4.4 GHz, 6 cores) Intel® Core™ i7-11700 Processor 2.5GHz (16M Cache, up to 4.9 GHz, 8 cores)

Operating System

Windows 11 Pro - ASUS recommends, Windows 11 Pro for business

Memory

2x DDR4 U-DIMM slot, 8GB DDR4 U-DIMM, Memory max up to:64GB

Storage

1TB SATA 7200RPM 3.5" HDD, 256GB M.2 2280 NVMe™ PCIe® 3.0 SSD 1TB SATA 7200RPM 3.5" HDD, 512GB M.2 2280 NVMe™ PCIe® 3.0 SSD

Chipset

Intel® B560 Chipset

Audio and Power Supply

Audio

High Definition 7.1 Channel Audio

Power Supply

300W power supply (peak 350W) 500W power supply (80+ Bronze, peak 550W)

Ports

Front I/O Ports

1x Headphone 1x MIC in 2x USB 2.0 Type-A 2x USB 3.2 Gen 1 Type-A

Rear I/O Ports

1x RJ45 Gigabit Ethernet 1x HDMI 1.4 1x VGA Port 1x DVI-D 2x PS2 1x Serial port 3 x Audio jacks 2x USB 2.0 Type-A 2x USB 3.2 Gen 1 Type-A

Size

Dimensions (W x D x H)

16 x 38 x 35.5 cm (6.30" x 14.96" x 13.98")

Weight

7kg
