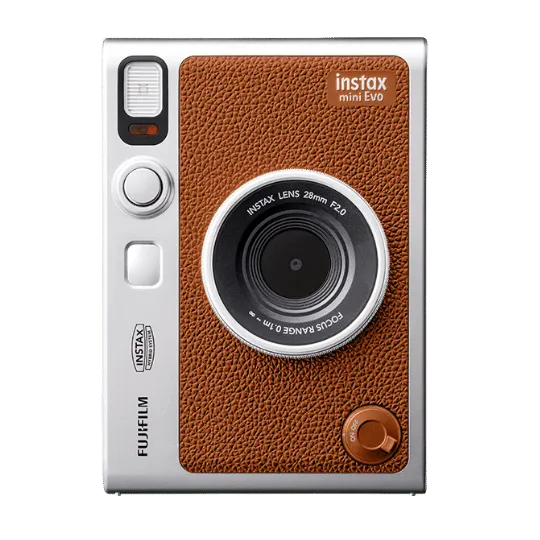

INSTAX mini Evo

Released June 15, 2023

INSTAX mini Evo

Key specifications
  • There are 100 different and fun ways to express yourself and get high quality INSTAX prints.
Available Colors
Pricing

Entry Level

Features and Full Specifications

Specification

Image sensor

1/5-inch CMOS with primary color filter

Number of recorded pixels

2560 x 1920

Aperture

F2.0

Flash

Auto flash / Forced flash / Suppressed flash Shooting range with flash: Approximately 50 cm to 1.5 m

Image effects

10 lens effects, 10 film effects Total of 100 effects by multiplying above

Storage

Storage media: Internal memory, microSD / microSDHC memory card. Storage capacity: Approximately 45 images in internal memory, approximately 850 images per 1 GB in microSD / microSDHC memory card.

Print Function

Exposure

Exposure pixel count: 1600 x 600 dots (800 x 600 dots when printed from smartphone app), Exposure resolution: 25 dots / mm x 12.5 dots / mm (635 x 318 dpi, 40 x 80 μm dot pitch), 12.5 dots / mm when printed from smartphone app (318 dpi, 80 μm dot pitch).

Interface

Standard compliance: Bluetooth Ver. 4.2 (BLE)

Printable image format

JPEG images taken with this unit

Print output time

Approximately 16 seconds. * Plus 7 seconds when printed using instax-Rich Mode immediately after startup.

Print

Print function: Images in the internal memory and images in the memory card can be printed. Reprint: Reprint is possible for images stored in print history (up to 50).

Interface

Standard compliance: Bluetooth Ver. 4.2 (BLE)

Other

Smartphone app linked functions

Smartphone image print function, remote shooting function, printed image transfer function, firmware upgrade function

LCD screen

3.0-inch TFT color LCD screen Pixel count: Approximately 460,000 dots

External interface

(1) Micro USB Micro-B (for charging only) / (2*1) USB Type-C (for charging only)

Possible number of printed images

Approximately 100 (from full charge) * The number of prints depends on the usage conditions.

Power and Charging

Power supply

Lithium ion battery (internal type: not removable)

Charging function

Built-in

Charging time

Approximately 2 to 3 hours. * Charging time depends on the temperature.

Body Design

Main unit dimensions

87 mm x 122.9 mm x 36 mm (excluding projecting parts)

Main unit weight

Approximately 285 g

Colors

Brown, Black
